Recommended application

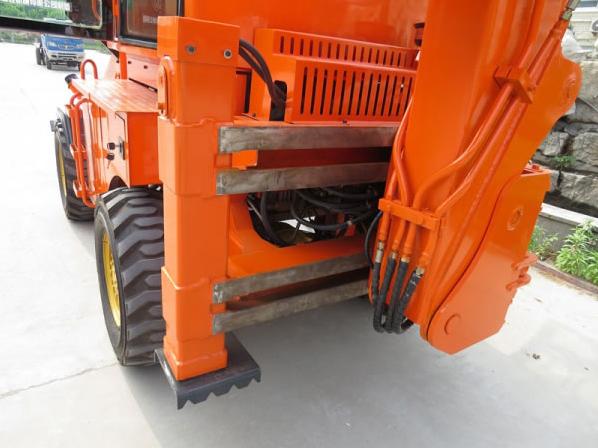

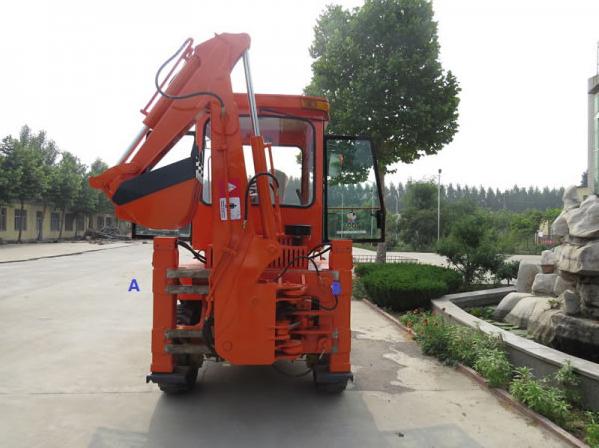

HY-15-10 4 wheel drive backhoe loaders not only have all the functions that small excavators and loaders possessed, but also can significantly expand the digging range with the sliding boom and the efficiency of digging is up to 20-40m3/h. According to the different demands of users, a variety of optional equipment can be added to implement different functions.
This series of loaders can be widely used in the construction and maintenance of urban and rural highways, cable laying, electric power and airport engineering, municipal construction, irrigation and water conservancy construction, rural housing construction, mining and exploration, etc.
Basic parameters
Total weight
3700kg
Gradeability
0.25
Walking speed
≤20km/h
Distance between axles
1725mm
Min. ground clearance
230mm
Overall dimension(L×W×H)
5400×1620×2650
Detailed information
1. technical specification of excavator
Bucket capacity
0.2m3
Working efficiency
20-40m3/h
Working times
3-5 times/min
Max. hauling force
23kN
Max. swing angle of boom
180°
2.working range of excavator
Max. digging depth
2100mm
Max. digging height
4000mm
Max. digging radius
4500mm
Max. dumping height
3000mm
3. technical specification of loader
Rated loading mass
1000kg
Lifting time of movable arm
4.5s
Lowering time of movable arm
3s
Summational time
10s
Max. ground clearance
10.5kN
4.working range of loader
Max. Dumping height
2400mm
Max. Dumping distance
900mm
Min. Ground clearance
3500mm
5.engine
Model
4L68
Rated power
51HP
6.hydraulic system
Working pressure
16Mpa
Max. flux
25ml/r
Features

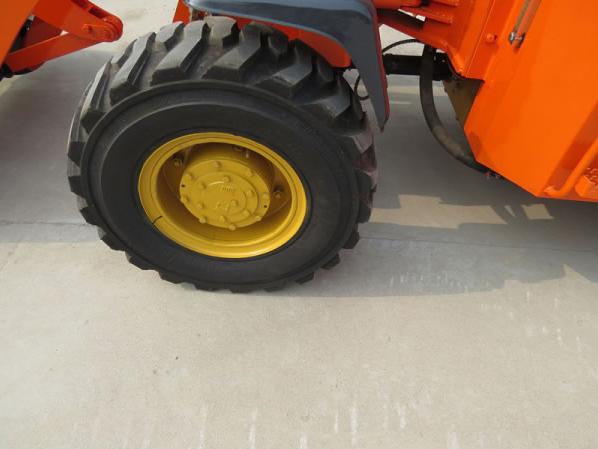

Large tyres
1. 51HP large torque engine combined with four wheel drive to ensure strong driving force.

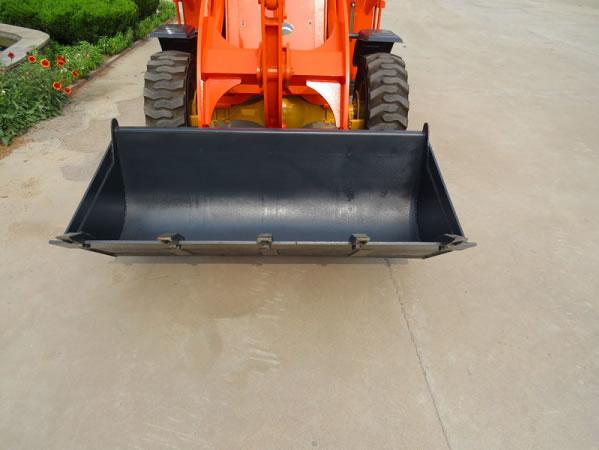

Standard bucket

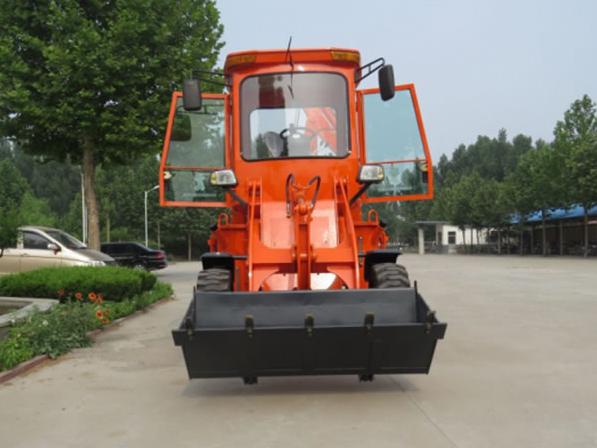

2. The prepositive standard bucket has a capacity of 0.2m3 and high digging efficiency.
3. The enlarged cab is made of safety glass, spacious and bright, and equipped with adjustable seat and operating handle, making the driving experience more comfortable.
4. The microcomputer controlled worktable makes the water temperature, oil temperature, current and work timing all be clear at a glance.
5. The rotatable oil tank is more convenient for refueling.
6. Using high quality hydraulic parts with long service life and fast working speed.
7. The steering and walking of the loader are hydraulically controlled, and equipped with advanced variable motor and stepless speed change device, the operation is easy and convenient.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
