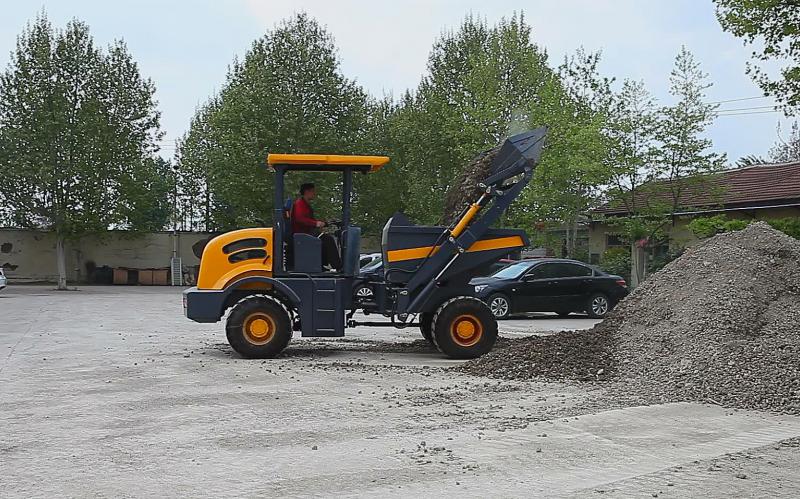

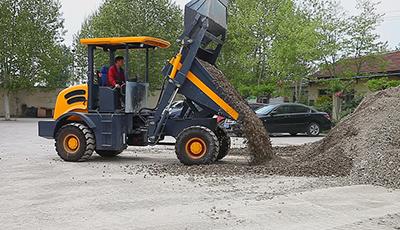

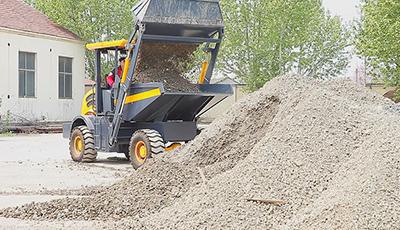

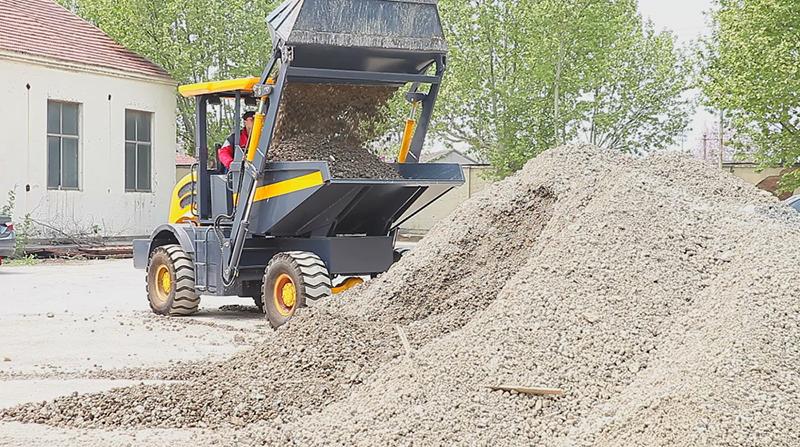

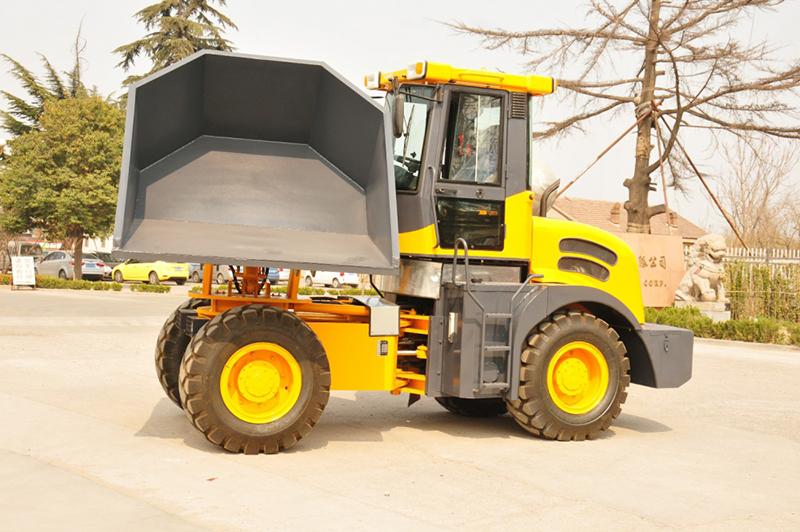

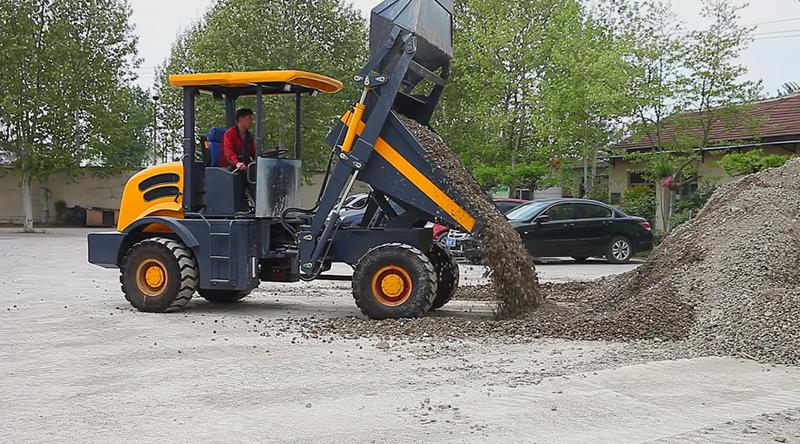

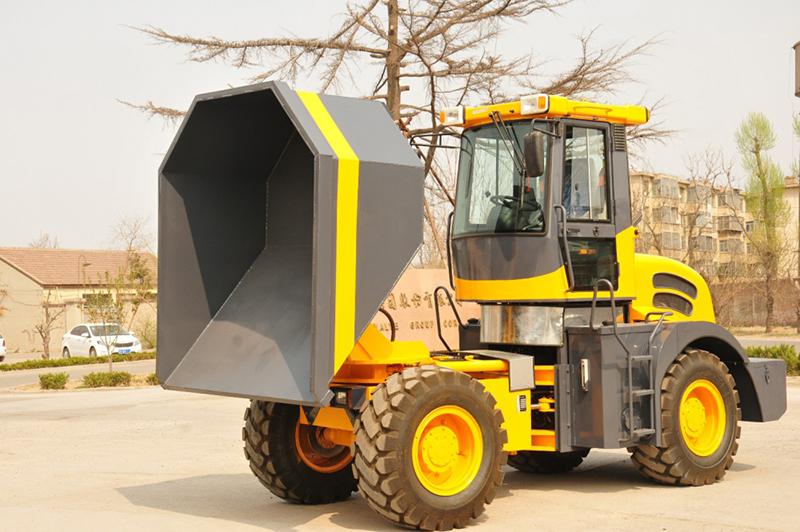

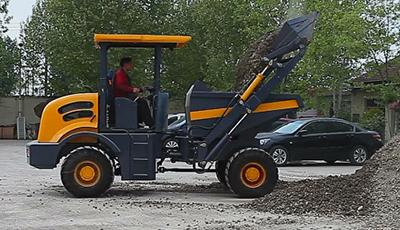

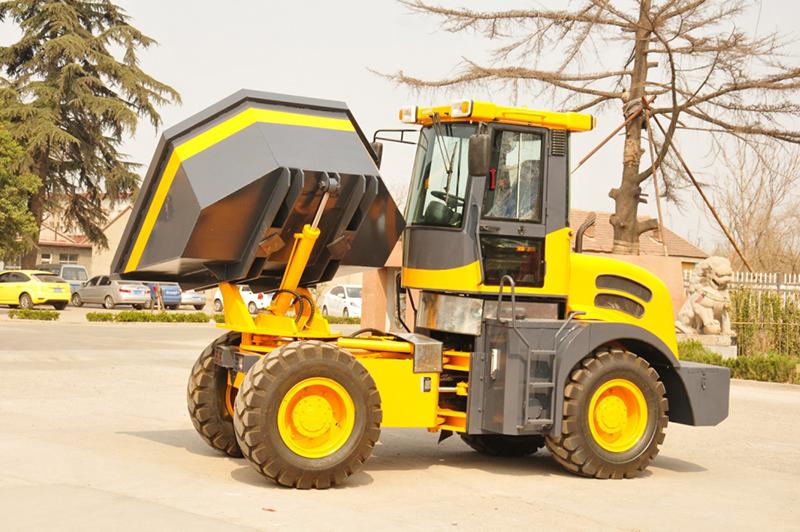

The wheel tipping dumper has a rated loading weight of 6000kg, and the prepositive bucket can rotate, dump freely, perfectly suitable for the loading and unloading and short distance transportation of various materials.

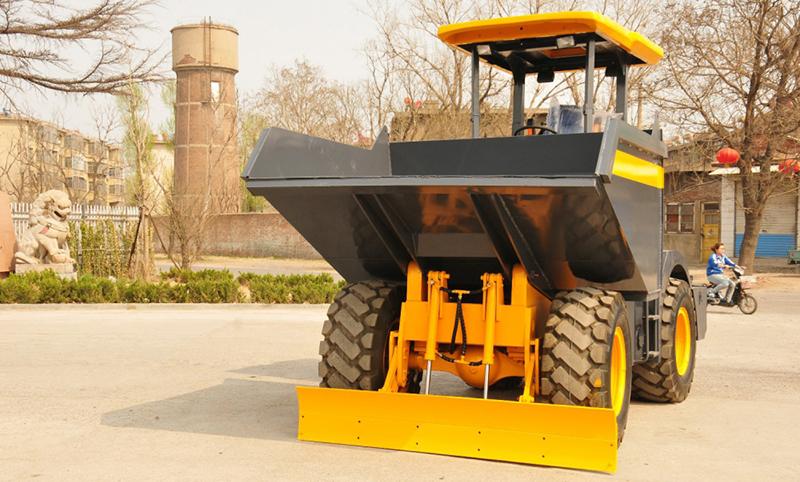

According to customers' requirements, the front part of the dumper body can also be installed with other attachments to realize different work purposes.
|Rated bucket capacity||4m3|
|Maximum tractive force||≥55kN|
|Maximum breakout force||≥46kN|
|Maximum grade ability||30°|
|Minimum turning radius||5750 mm|
|No. of cylinder-bore/stroke||4-108×120mm|
|Min fuel-consume ratio||≤243g/kw×h|
|Wheel base (mm)||2530mm|
|Front tyre pressure||0.22Mpa|
|Rear tyre pressure||0.18Mpa|
|Minimum ground clearance||310mm|
|System working pressure||16MPa|
|Fuel tank capacity||80L|
|Engine model||Dongfanghong 4108|
|Engine type||Vertical, in-line, water cooled, 4-stroke diesel engine|
|Type of torque converter||YJ-280A|
|Type of gearbox mode||Countershaft power-shift|
|Number of gear shift||2 forward shift, 2 reverse shift|
|Main reducing mode||Circular Arc Bevel gear, single stage|
|Decelerating mode||Single stage planetary type|
|Service brake||air assist disc brake on 4 wheels|
|Parking brake||Flexible shaft operated external drum|
|Type specification||16/70-20 wide tyres|
1. 4 wheel drive dumper truck DP40 with 2.5CBM bucket.
2. 16/70-20 wide tires.
3. Hydraulic Pilot Control.
4. 2F and 2R speed control.
5. Adjustable steering wheel.
6. Comfortable seat.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
wheeled dumper, bulk material transport vehicle, tipperk
