Recommended application

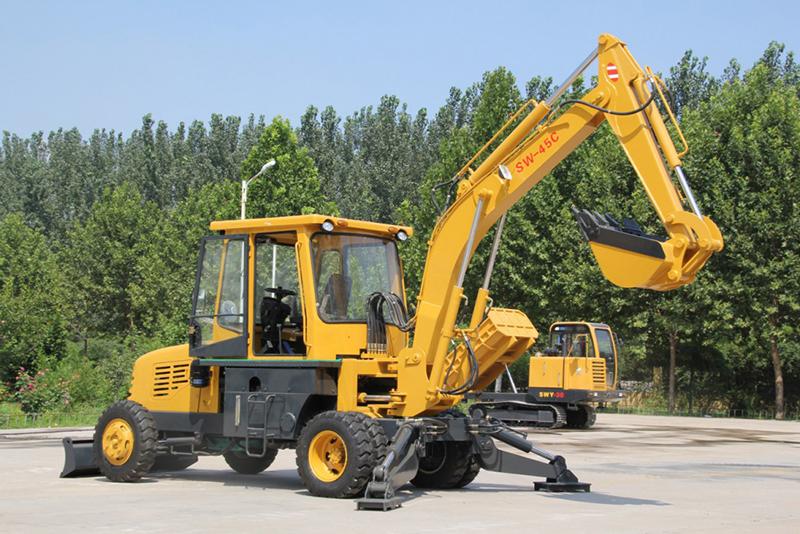

The mini wheel excavator has a bucket capacity of 0.4m3, equipped with a 47kw engine, and the working efficiency up to 30-60m3/min, which is mainly used for construction and maintenance of urban and rural highways, cable laying, electric power and airport engineering, municipal construction, irrigation and water conservancy construction, rural housing construction, mining and other construction projects.
Working range
Max. Digging Depth(mm)
3000
Max. Digging Height (mm)
6300
Max. Digging Radius (mm)
5500
Max. Dumping Height (mm)
4000
Technical parameters
Model of engine
4102
Rated Power
47kW
Total Weight
4500kg
Bucket Capacity
0.4m3
Hydraulic System Working Pressure
16Kpa
Max. Flux
80ml/r
Work Efficiency
30-60m3/min
Working Times
3.6t/min
Grade ability
25%
Max. Hauling Force
29kN
Walking Speed
39km/h
Boom Rotation Angle
180°
Overall Dimension
7000*2050*2600mm
Wheel base
2730mm
Min. Ground Clearance
210mm
Detailed configuration

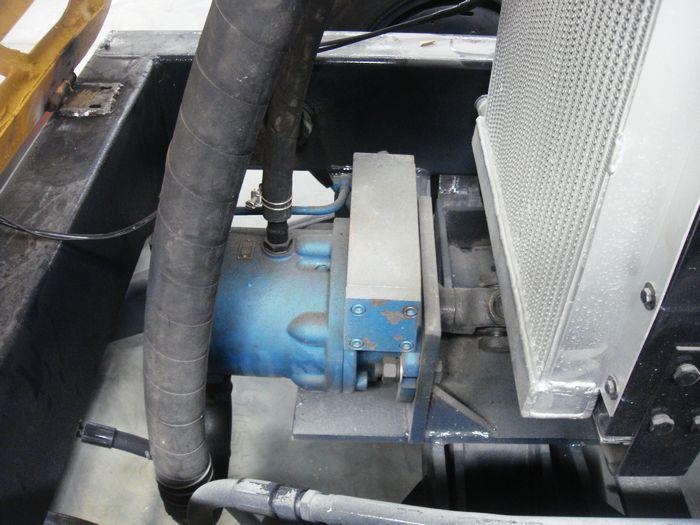

Plunger pump
1. Using famous brand hydraulic parts with long service life, strong power and fast working speed.
2. The main operations are completed with two operating levers, and the switch buttons are arranged centrally, making the equipment easier to be used.

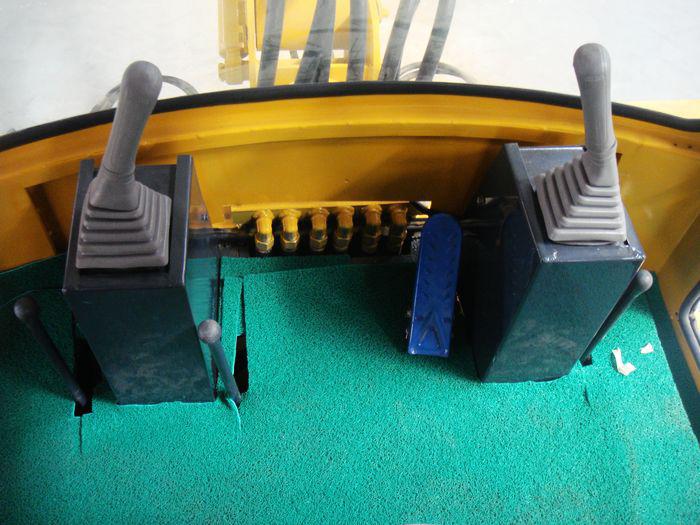

Operating levers

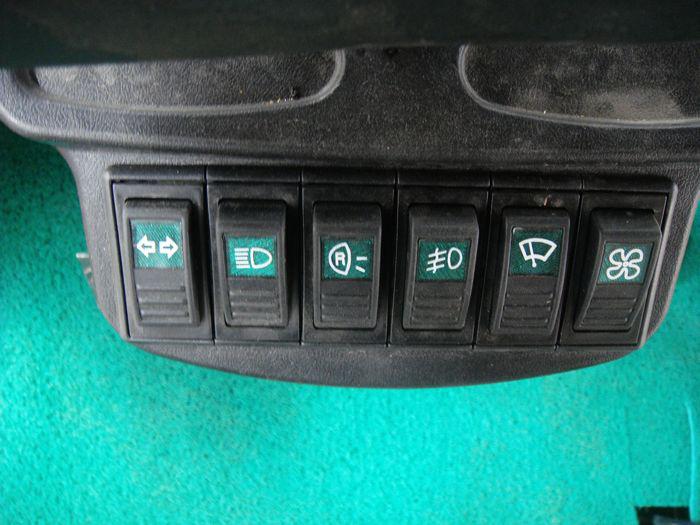

Switches

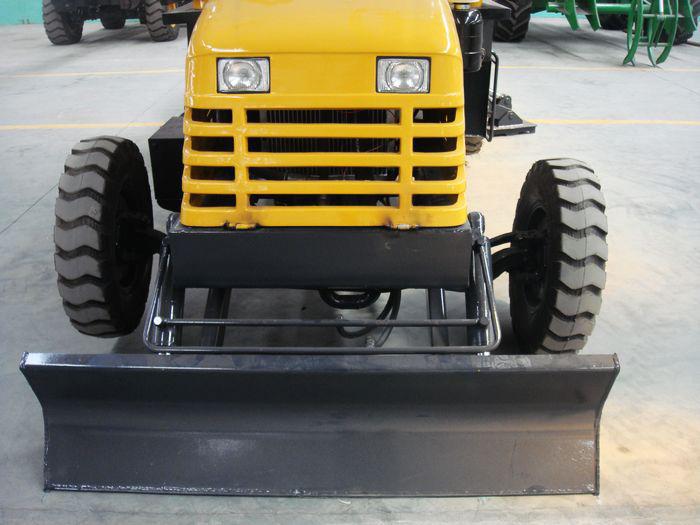

3. The prepositive bulldozing plate facilitates the finishing of the sites.

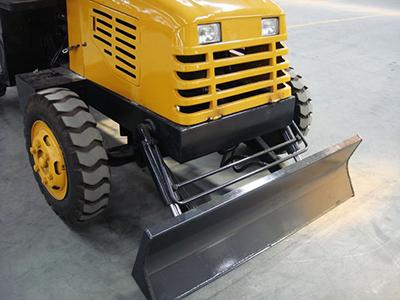

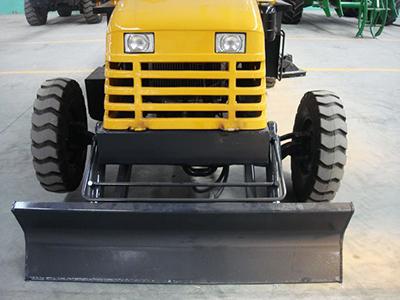

Bulldozing plate
Bulldozing plate
4. The deluxe cab is made of safety glass, bright and safe. The engineering seat provides the drivers with comfortable working environment, near which are equipped with audio and fan.

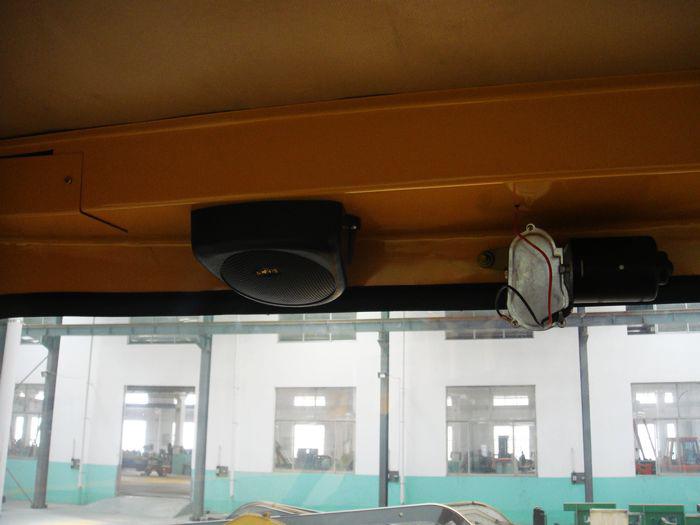

Audio

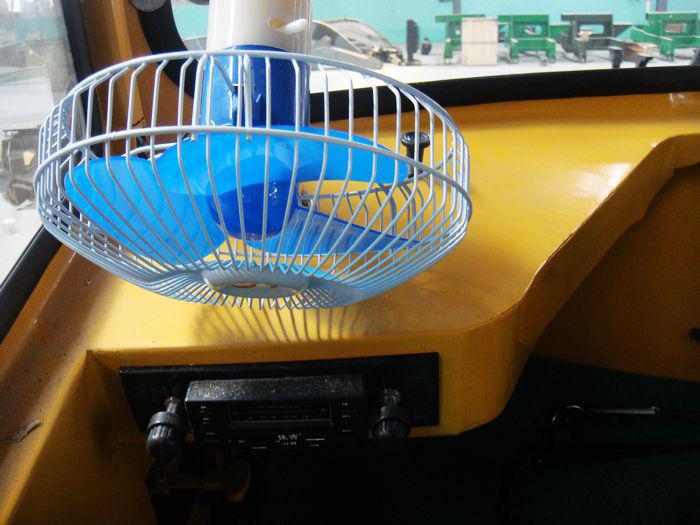

Fan

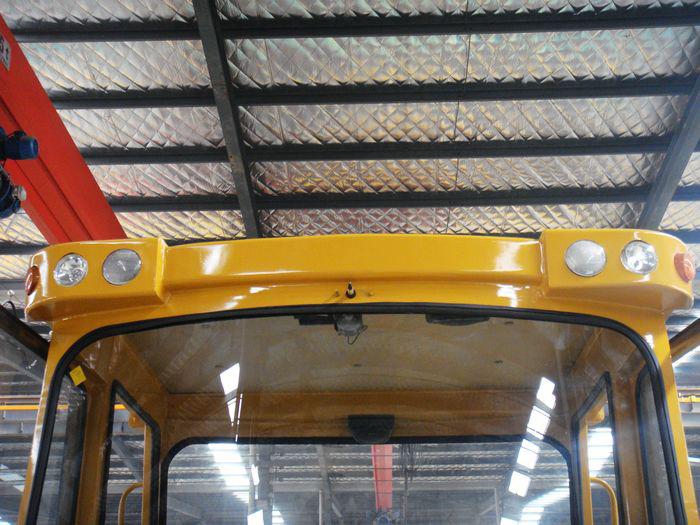

Top work light

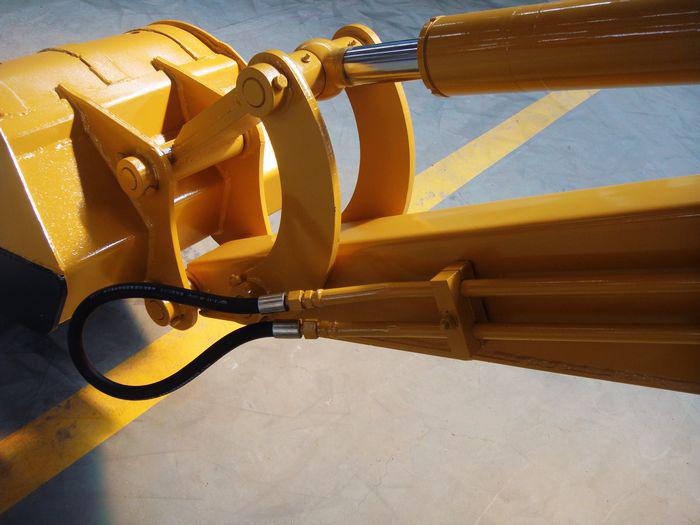

Spare oil pipe for the installation of hydraulic rock breaker
Spare oil pipe for the installation of hydraulic rock breaker is designed specially for providing force to the rock breaker.

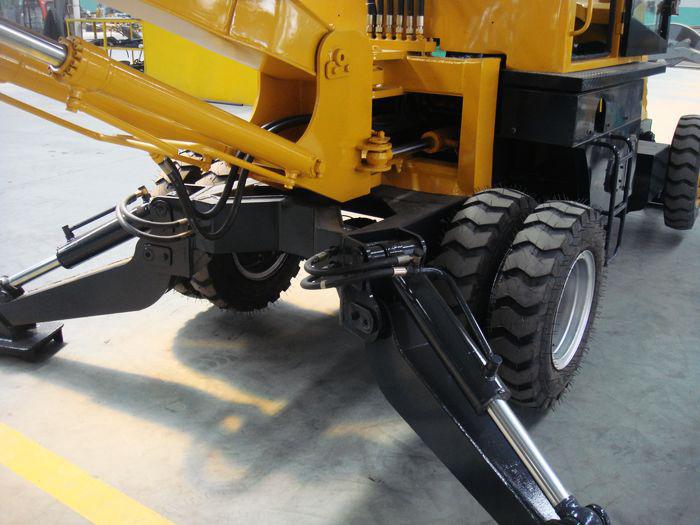

Hydraulic leg
The hydraulic leg is designed to keep the excavator stable during the excavation and breaking work.
6. The microcomputer controlled worktable makes the water temperature, the oil temperature, the current and the working timing all be clear at a glance.
7. Rotatable oil tank makes refueling convenient.
8. The oil return filter is set up in the return oil loop to ensure the hydraulic oil be clean.
Hongyuan have been manufacturing super quality wheel loaders, offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
