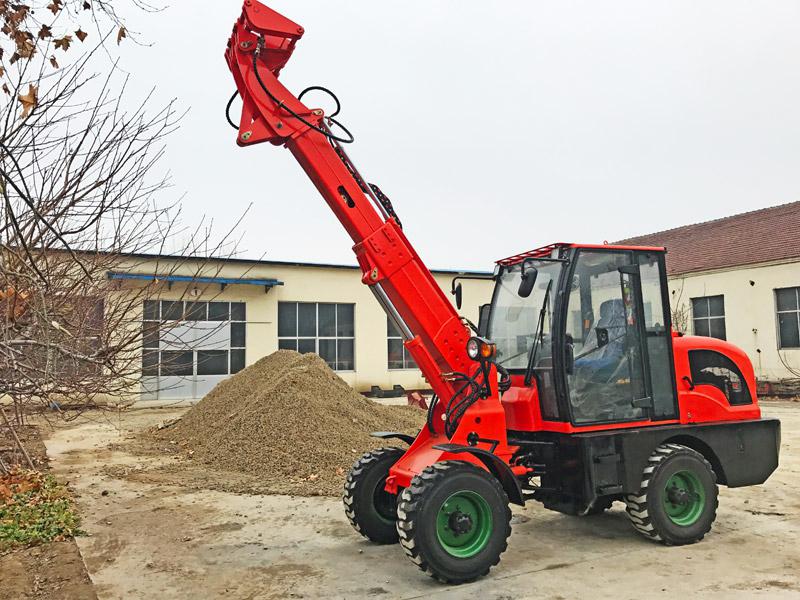

1000kg Telescopic Loader
Recommended application
The rated load of HY1000 telescopic loader is 1000kg. Meanwhile, the dumping height of the machine can reach 41m, the turning radius being only 30m, thus it can adapt to flexible operation in narrow space. A single machine can replace at least 20 workers‘ labor, both efficient and safe.
The loader is equipped with front standard bucket and fast connector, so that users can conveniently replace attachments with different functions according to different operation needs, and can be widely applied to farms, ranches, logistics warehouses, municipal maintenance and other work fields.
Basic parameters| Overall weight(kg) | 3000 |
| L×W×H(mm) | 5900×1700×2650 |
| Rated bucket capacity(m3) | 0.6 |
| Rated load(kg) | 1000 |
| Maximum lifting height (mm) | 4100 |
| Bucket indicator | Yes |
| Max. breakout force(KN) | 30 |
| Engine | Model | Perkins 404D-22(EURO III) |
| Type | In-line arrangement, Water cooling, four-stroke | |
| Rated power(kw) | 35.7kw | |
| Rated speed(r/min) | 2600 | |
| Transmission system | Model of torque converter | YJ240 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | ZL20B |
| Working pump | CBGj1032,CBGq1018 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 27± 1 ° | |
| Min turning radius(mm) | 3000 | |
| Brake system | Brake type | Oil brake(Vacuum booster) |
| Tyres | Standard tyres | 12-16.5 Tubeless tyre |
| Optional wide tyres | 14-17.5 or 31x15.5-15 |
1. The Perkins brand of 404D-22 engine, cooperated with the 220V engine heater, runs steadily.
2. Using four wheel drive, with 12-16.5 vacuum tires, it is applicable to various working conditions.
3. The cab is equipped with deluxe seats, LED lights, adjustable steering wheel, hydraulic joystick and microcomputer controlled operating system, facilitating the driver’s operation.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
