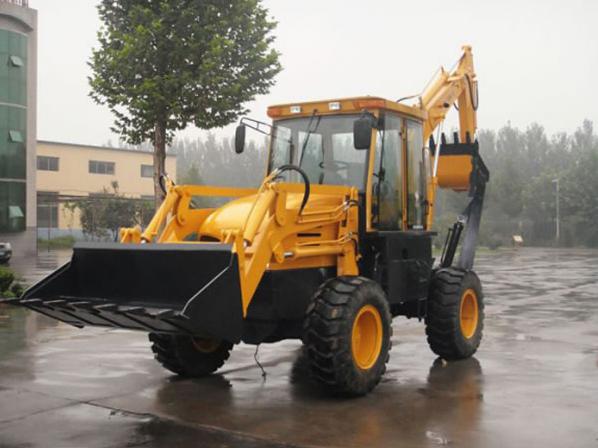

In addition to all the functions small excavators and loaders possessed, HY-40-15 4 hydraulic backhoe loaders can significantly expand the digging range with the sliding boom and the efficiency of digging is up to 20-40m3/h. According to users’ different requirements, various optional equipment can be equipped to realize different functions.
This series of loaders have wide applications in the construction and maintenance of urban and rural highways, cable laying, electric power and airport engineering, municipal construction, irrigation and water conservancy construction, rural housing construction, mining, exploration and other construction projects.Basic parameters
|Distance between axles||2700mm|
|Min. ground clearance||250mm|
Detailed parameters1.working range of excavator
|Max. digging depth||3000mm|
|Max. digging height||5600mm|
|Max. digging radius||5200mm|
|Max. dumping height||4300mm|
|Working times||4-7 times/min|
|Max. hauling force||29kN|
|Max. swing angle of boom||180°|
|Max. dumping height||2900mm|
|Max. dumping distance||950mm|
|Min. ground clearance||5000mm|
|Rated loading mass||1500kg|
|Lifting time of movable arm||3.5s|
|Lowering time of movable arm||2.5s|
|Max. Ground clearance||10.5kN|
1. Dongfeng Cummins 10HP large torque engine, combined with four wheel drive, to ensure the loader strong driving force.
2. The enlarged cab made of safety glass, spacious and bright, and equipped with adjustable seat and operating handle, to create more comfortable driving experience.
3. The microcomputer controlled worktable makes the water temperature, oil temperature, current and work timing all be clear at a glance.
4. The rotatable oil tank facilitates refueling.
5. Adopting high quality hydraulic parts with long service life and fast working speed.
6. The steering and walking of the loader are hydraulically controlled, and equipped with advanced variable motor and stepless speed change device, the operation is easy and convenient.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
