Recommended application

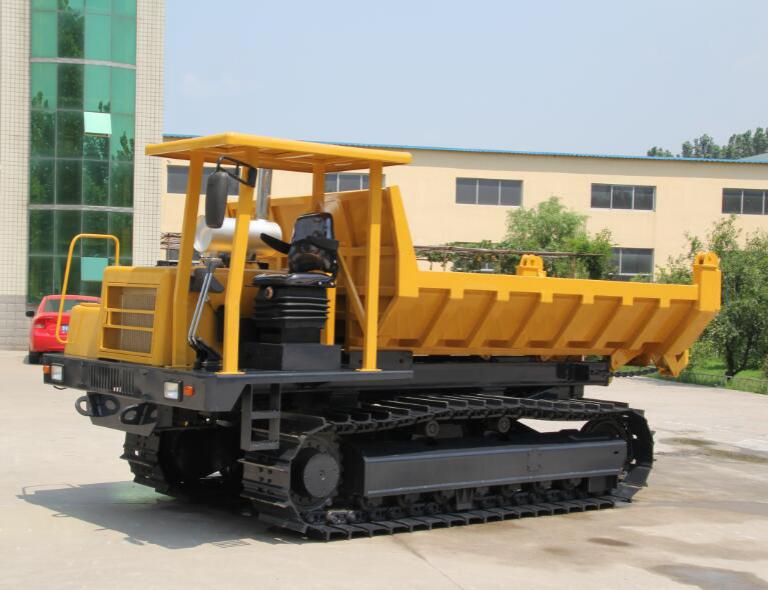

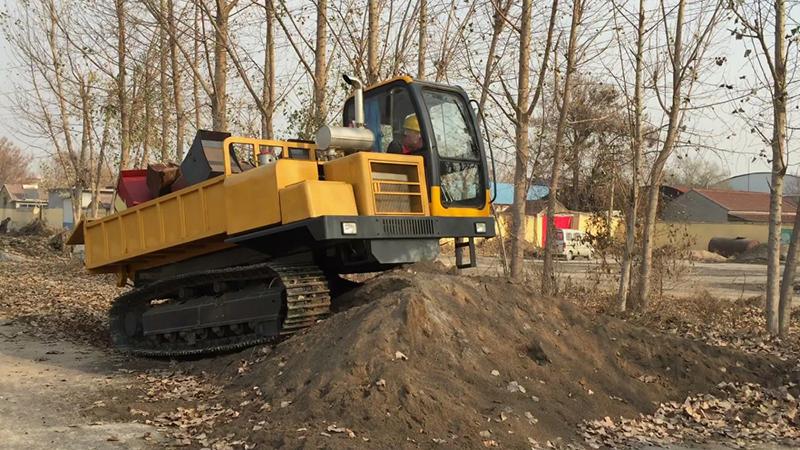

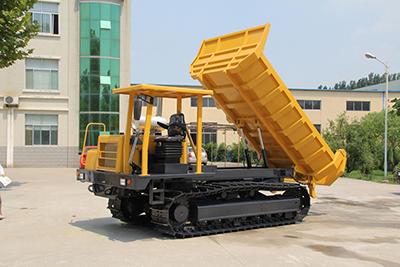

The crawler dump carrier is primarily used for transporting goods, which has a loading capacity of 6000kg and a climbable gradient of 25% (about 15°). Owing to its superior performance and high climbing capacity, it is especially suitable for transporting heavy objects on muddy roads, rough roads, or ice and snow covered roads.
Engine power | 130HP |
Engine brand | Cummins |
Model of engine | 4BTA3.9-C130-II |
Walking speed | 7km/h |
Loading capacity | 6000KG |
Wide of track | 500mm |
overall track length | 2560mm |
Overall dimensions | 5600×2200×2500mm |
Slope | 25% |
Minimum ground clearance | 400mm |
Note: Hongyuan Vehicles can provide OEM production as well as customized carrier vehicles as required.
Features1. The crawler dump carrier has the function of self unloading, more convenient and efficient for unloading.

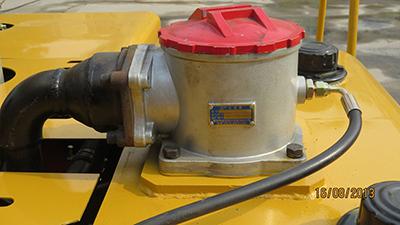

2. The hydraulic system of crawler dump truck adopts forced air-cooled heat exchanger, which can achieve ventilation and heat dissipation under high temperature operation, keeping temperature of the hydraulic oil around 80°.

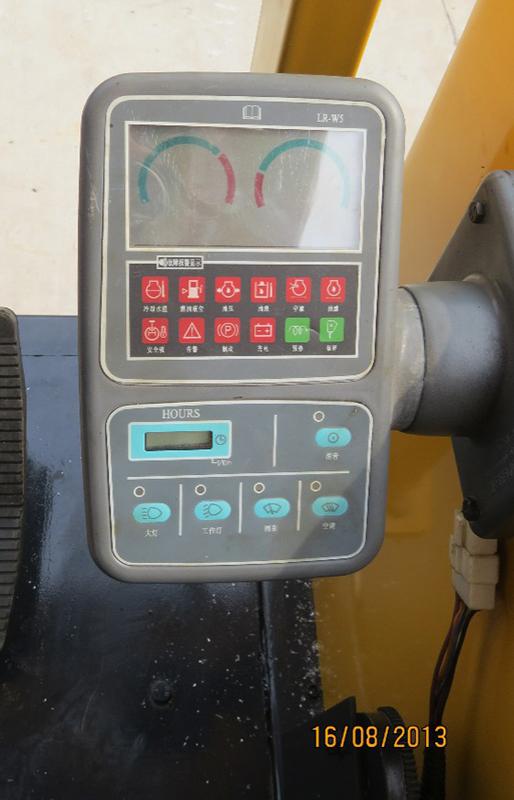

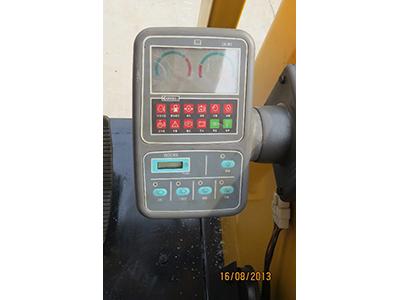

3. The multifunctional indicator makes it convenient for drivers to understand the working state of equipment

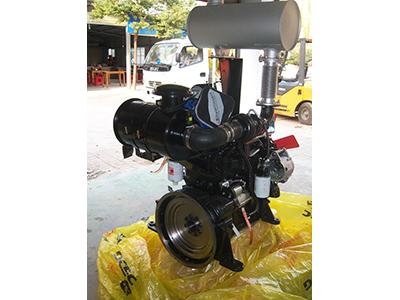

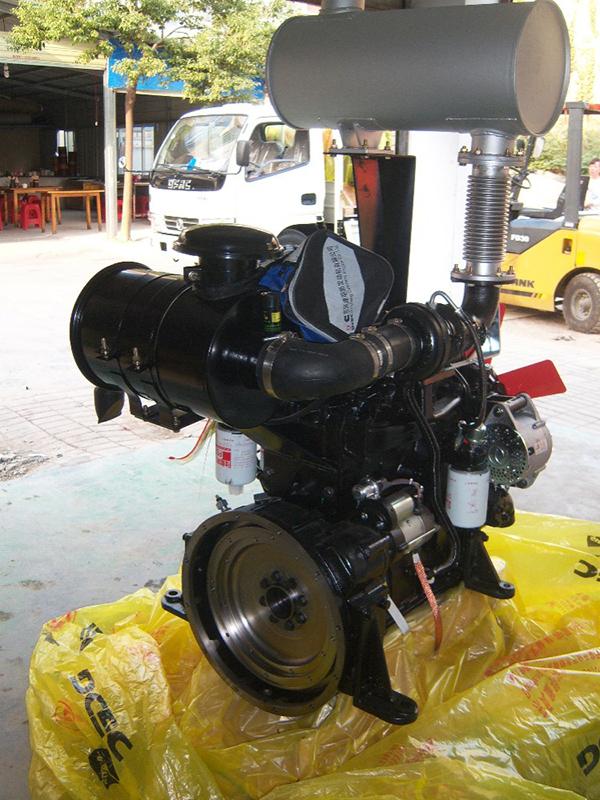

4. Using Dongfeng Cummins 130HP strong engine, with large torque, strong power, and global joint warranty service provided.

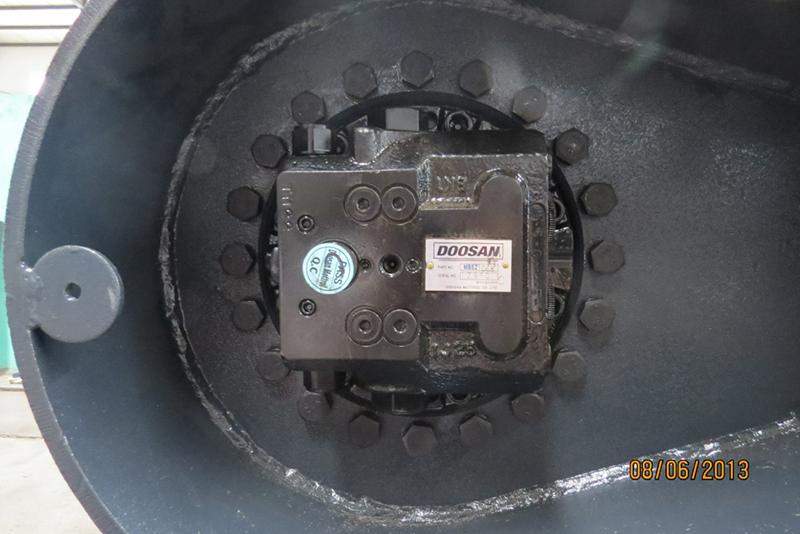

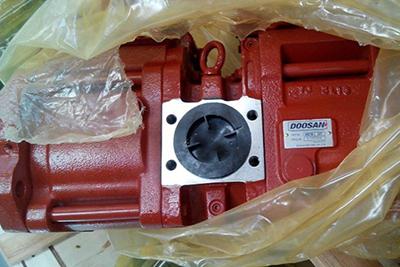

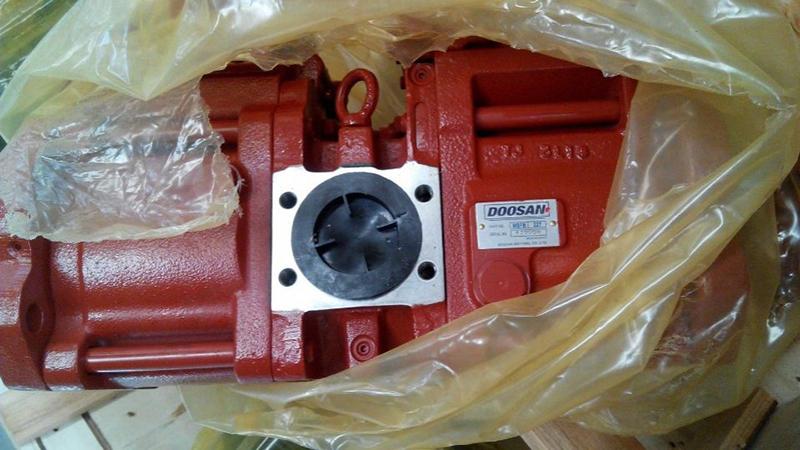

5. High quality Korean Doosan original hydraulic system ensures the reliability of the hydraulic oil system.

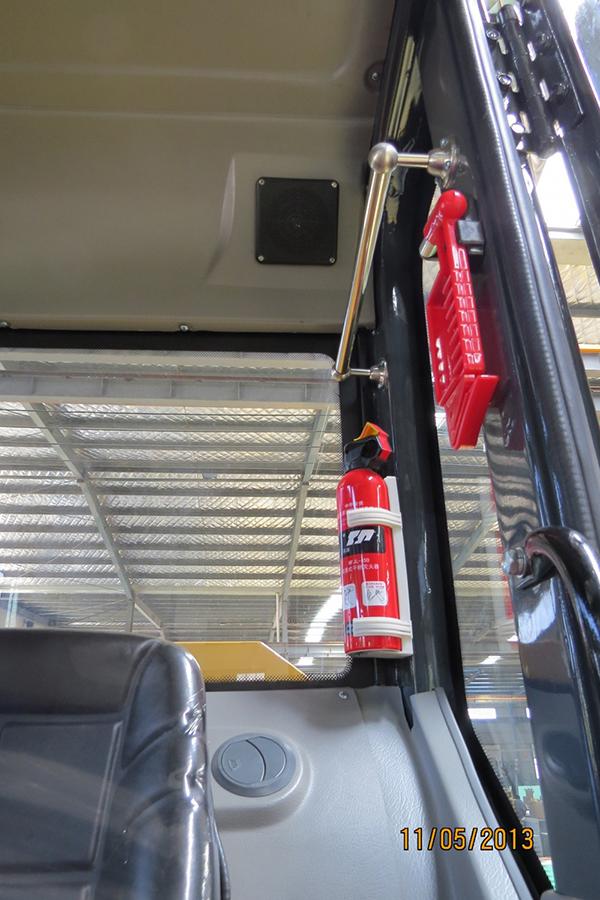

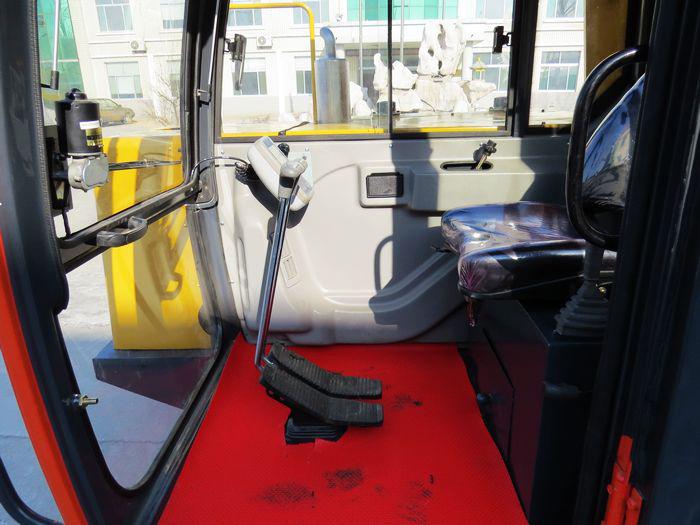

6. The transparent spacious cab provides better working environment for the driver, where a fire extinguisher and a safety hammer are equipped.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
