Recommended application

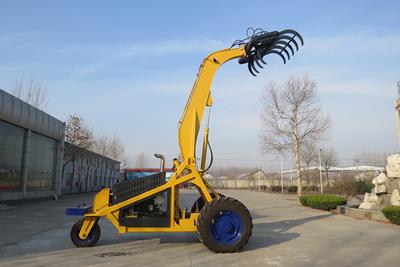

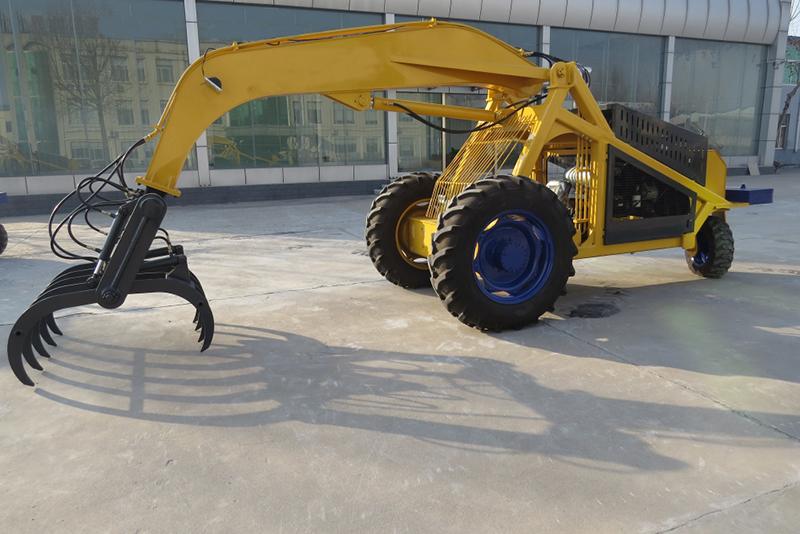

HY5200 sugarcane loader is designed with sugarcane collector, which can stack the scattered sugarcane into bundles, easy for the sugarcane loader to achieve sugarcane loading. The loader has an engine with working efficiency available in 1000kg/min and the loading height can reach 5480mm under full-load conditions.
The loader can rotate on the spot at 360 degrees, the front grapple can be installed from side, and the climbing ability is strong, which is suitable for working on different fields.

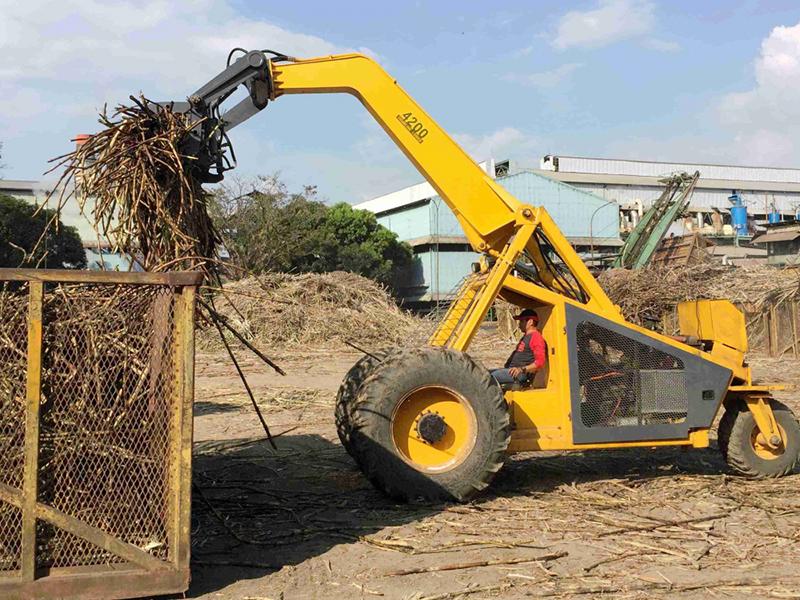

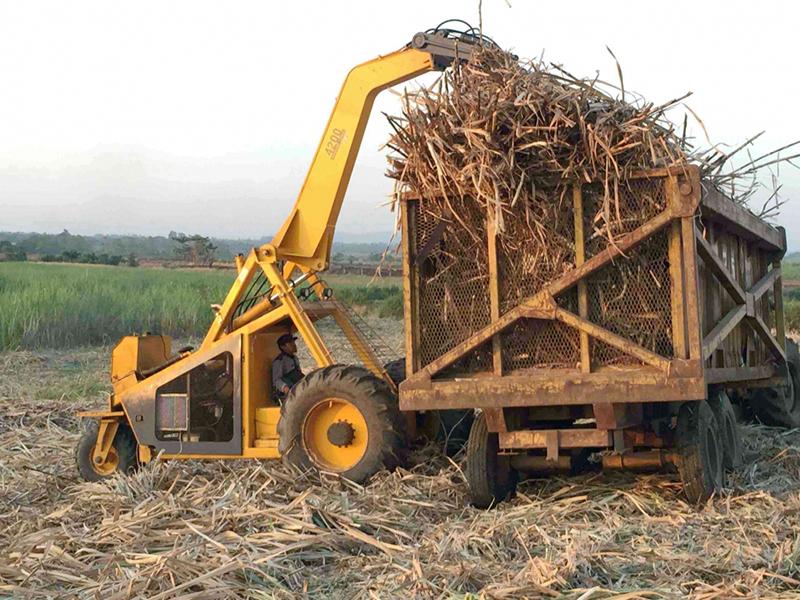

Practical application
Technical parameters
Operating Weight
5020KG
Grab Capacity
400-700KG
Engine Brand
Yuchai/ Cummins
Model of Engine
4105/4BTA3.9-C100
Rated Power
74W
Walking Speed
5-7KM/H
Max. Height of Grapple
5480mm
Working Efficiency
1000kg/min
Hydraulic System Working Pressure
22MPA
Maximum Hauling Force
29KN
Slope
0.25
Tyre (standard model)
18.4-30(front dual) front wheel 400-60-15.5(rear one) rear wheel
Wheelbase
3460mm
Overall dimension(L×W×H)
360X2100X2880mm
Note: In addition to providing OEM production, Hongyuan can also offer customized products according to customer requirements.
Detailed configuration

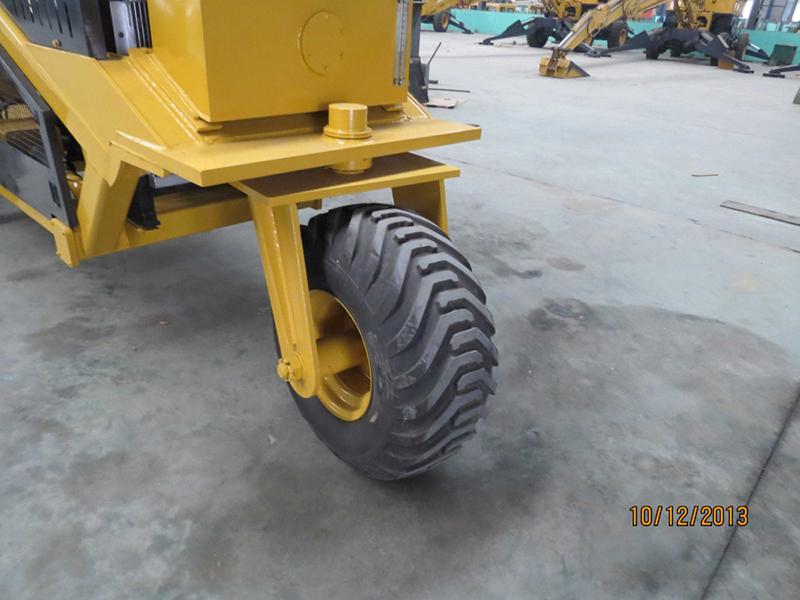

large rear wheel

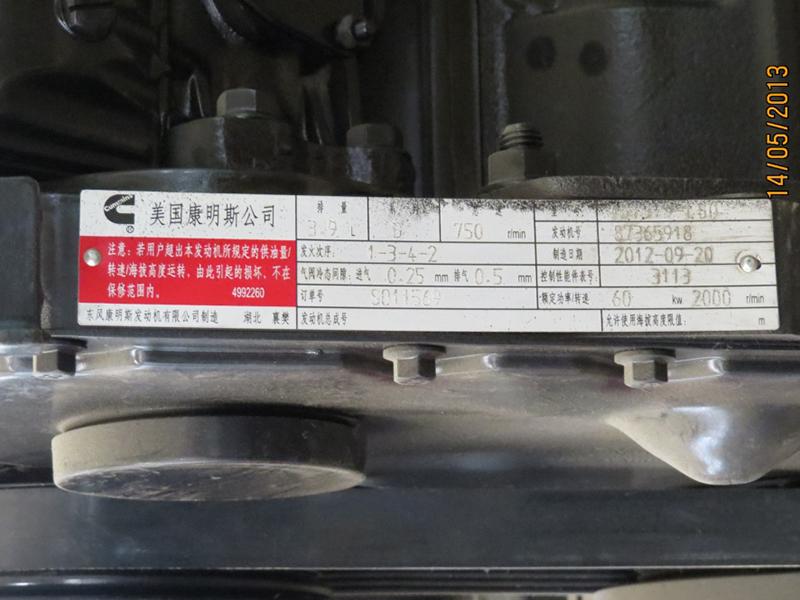

80HP Cummins engine

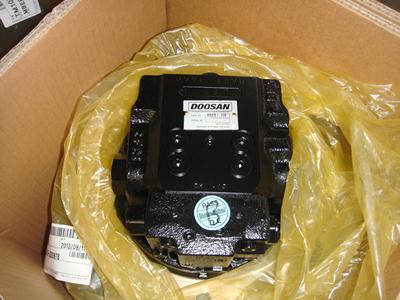

Original Doosan motor

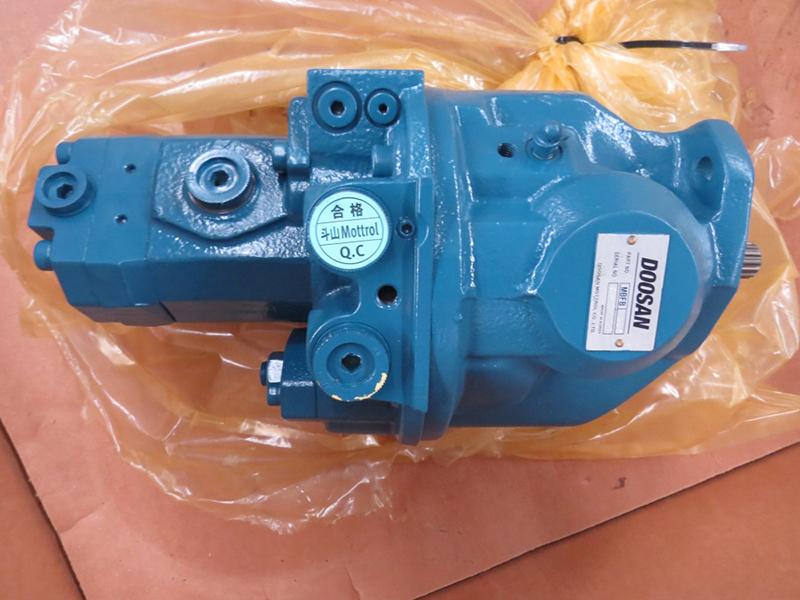

Original Doosan oil pump

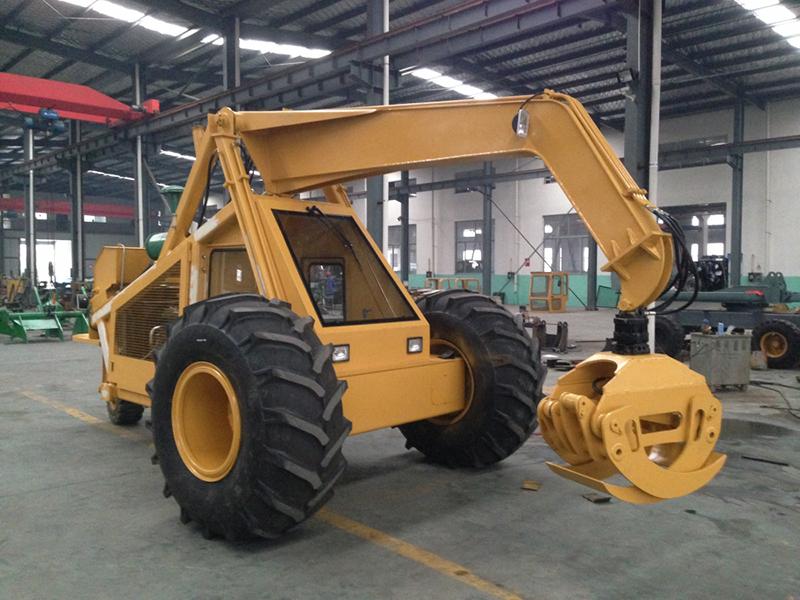

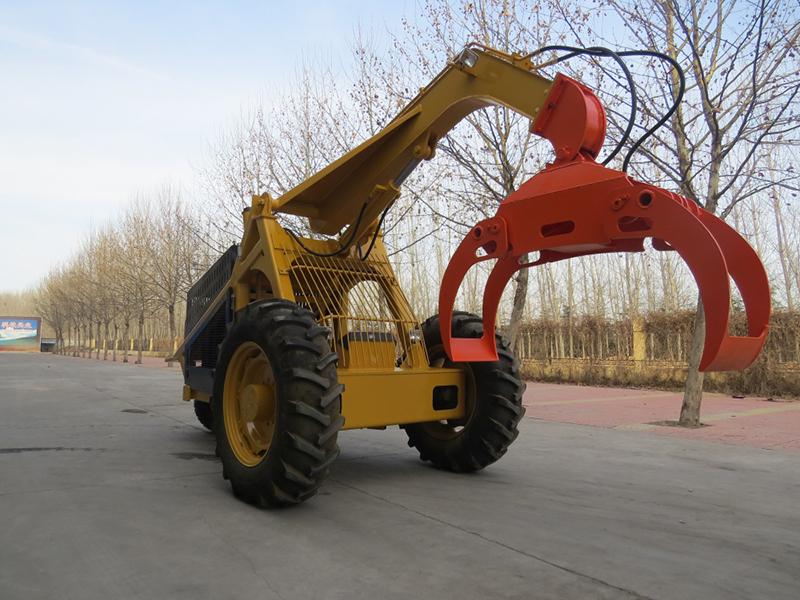

Logger Grapple is available
Logger Grapple is available
Features
1. This sugar cane grab loader uses the Dongfeng Cummins 80HP strong engine, with large torque, strong power, and global joint warranty service provided.
2. The loader can walk while stacking, and the driver can complete multiple operations at the same time through hand and foot cooperation, thus it works flexibly, greatly improving the efficiency that a single machine can replace a lot of human work.
3. The worktable controlled by a microcomputer makes the water temperature, the oil temperature and the work chronograph be clear at a glance.
4. The key parts all use reliable spare parts produced by internationally renowned manufacturers, such as Cummins engine, Korean Doosan main pump, customers can find local suppliers of these spare parts if any parts need replacing.
5. Hydraulic system of HY5200 sugarcane loader adopts forced air-cooled heat exchanger, which can achieve ventilation and heart dissipation under high-temperature operation, ensuring that temperature of hydraulic oil stays around ºC
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
