Recommended application

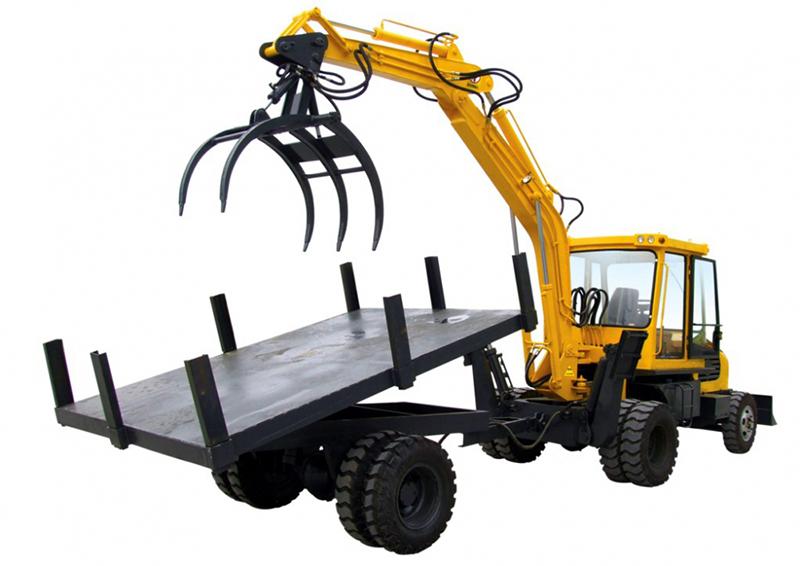

The wood log trailer loader is the equipment used specially for grabbing and transporting wood, with a pallet for wood placing. The boom can swing at 180 degrees, several stand columns are mounted around the pedal to avoid fall of wood logs during the transportation, ensuring higher working efficiency.
Grapple capacity | 400-700KG |
Grapple height | 3500mm |
swing angle of boom | 180° |
Max. opening width | 1700mm |
width of pallet | 2000mm |
Length of pallet | 3000mm |
Engine model | 4102 |
Rated power | 47kw(64hp) |
Hydraulic system working pressure | 16MPa |
Max. flux | 80ml/r |
Grade ability | 0.25 |
Max. hauling force | 29kN |
Max. walking speed | 39km/h |
Tyre | 7.50-16 |
Note: Hongyuan can provide OEM production and customized machines as required.
Detailed configuration

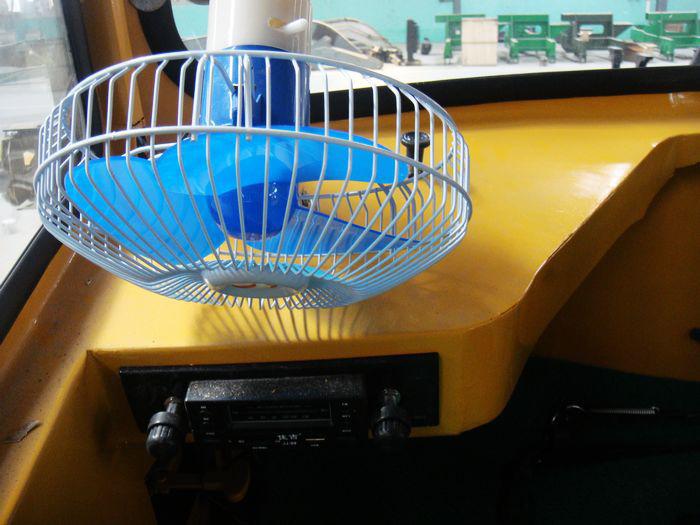

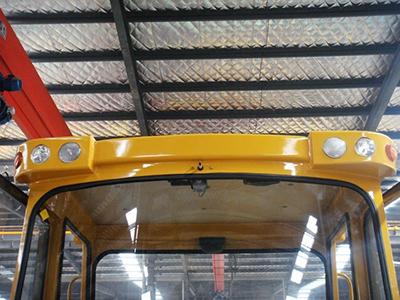

1. The deluxe cab is made of safety glass, which is spacious and bright for the drivers to work, it also has a fan for the operators to work comfortably even under hot summer.

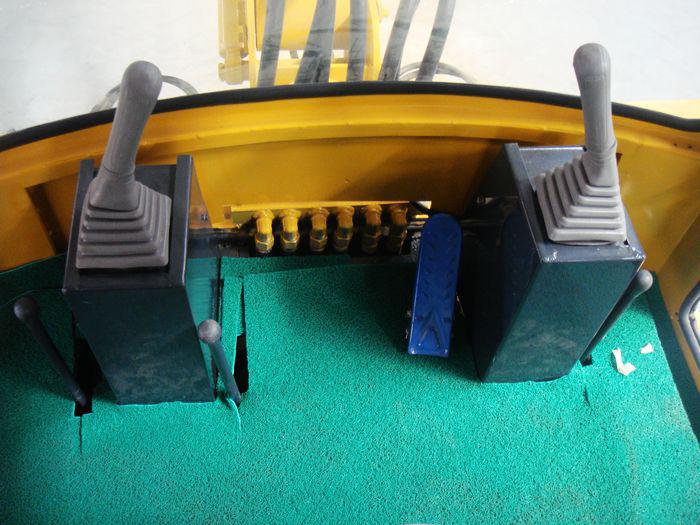

2. The operation is done through two handles, which is simpler and more labor saving during use.

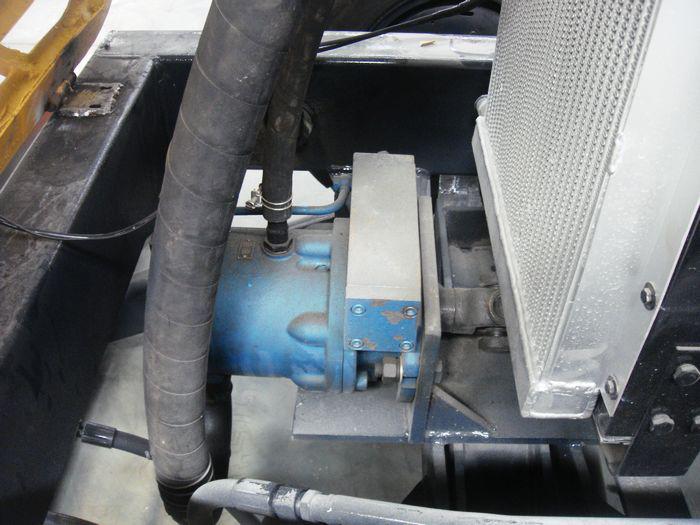

3. Using famous brand of hydraulic parts, it has long service life, strong power and fast working speed.

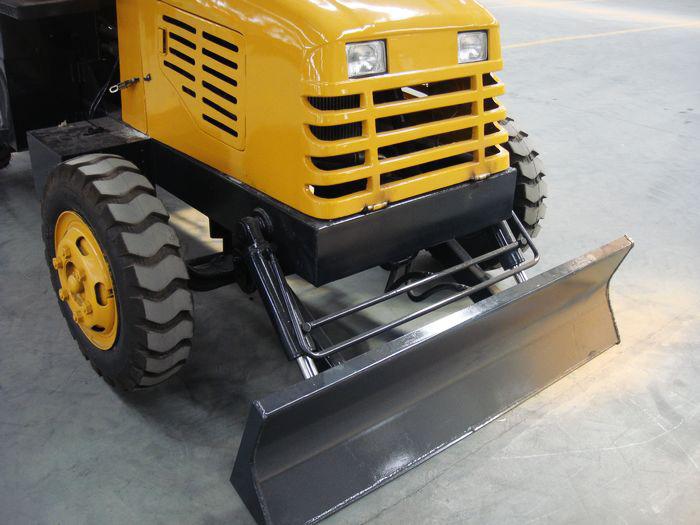

4. The prepositioned bulldozing plate facilitates to tidy the field.
5. Others:
7. Rotatable oil tank, convenient for refueling.
8. The return filter is set up in the return oil circuit to ensure the cleaning of the hydraulic oil.
9. A variety of optional equipment can be equipped to meet requirements of different users.
10. The deluxe seat is designed by ergonomics to provide a more comfortable driving experience.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
