Description

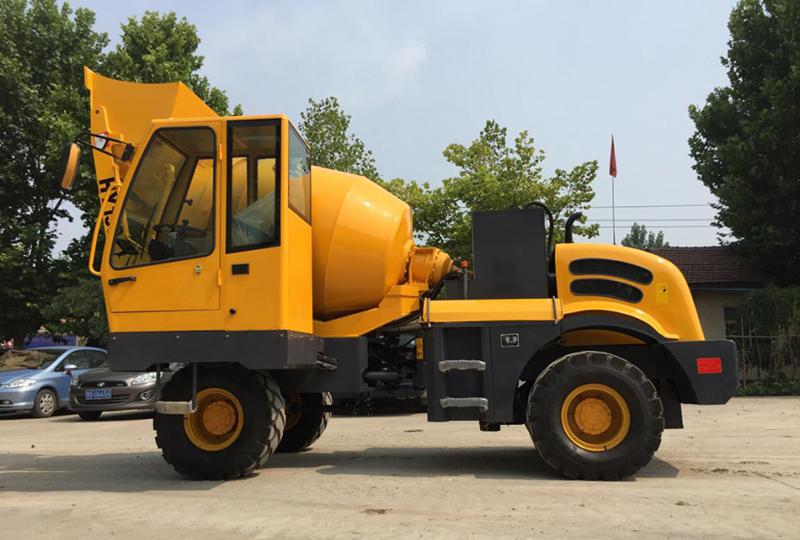

The HY-160 self loading concrete mixer has output capacity of 1.6M3, adopting four wheel drive, which can complete loading, weighing, mixing and unloading independently, greatly improving production efficiency, reducing time and cost.
The mixer is composed of chassis, transmission system, hydraulic system, frame, mixing tank, charging and discharging device, water supply system, operating system, human ladder etc.. The front end of the mixing tank is connected and installed with the reducer on the front of the frame, and the back end is supported by two riding wheels installed in the back of the frame.
Main parameters
Net weight
5500 KG
Tilt angle
0.2
Travel speed
High speed: 0-25KM/H; low speed: 0-9KM/H
Minimum turning radius
4.5M/R
Transmission mode
Full hydraulic transmission
Drive mode
4-wheel drive
Control mode
Hydraulic control valve
Brake mode
Air Brake
Overall dimensions
5400*2400*3500mm
Features
High efficiency

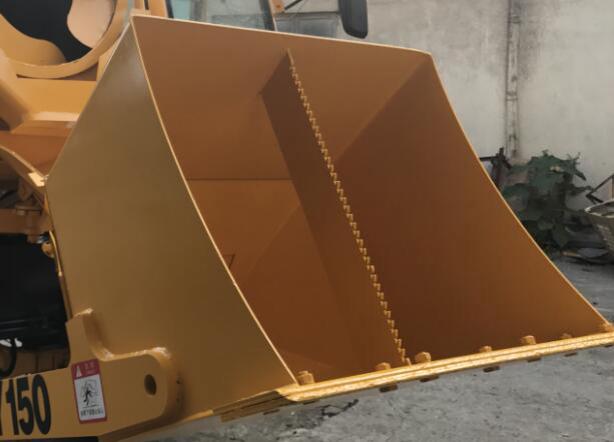

Loader bucket
1. The whole vehicle adopts four wheel drive, able to carry out transportation and construction of concrete under harsh working conditions. The capacity can reach 8-10 m3/h, greatly saving labor.
2. The loader bucket of increased size is operated by hydraulic pressure, installed with bag breaker inside, which can automatically finish the unpacking work for bagged materials.
High performance mixing tank

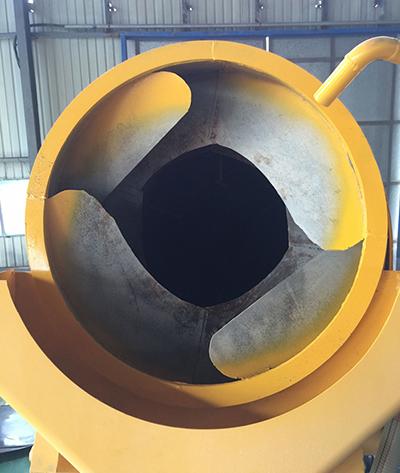

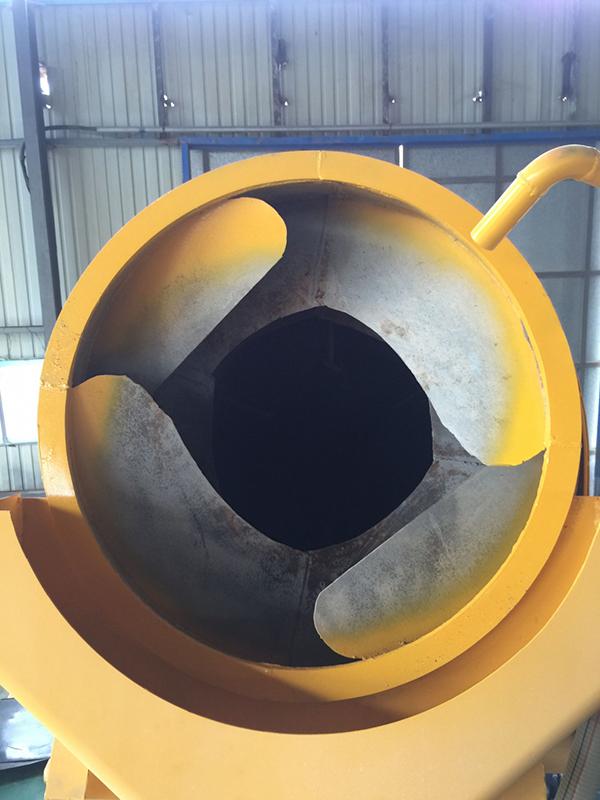

Blades
1. The mixing tank can realize multi direction unloading through slideway.
2. With ingenious taper design, strong sealing ability, higher filling efficiency, when the geometric volume keeps constant, the loading capacity of the tank is improved by 6%.
3. The tank body and blades are all made of high strength wear-resistant steel, of which the service life is increased by 30%. The feed hopper and detachable chute are made of multi-layer high strength wear-resistant liners, of which the service life is increased by 50%.
4. The front cone is designed by large lift angle to make uniform mixing, and the slump changes less than 5% in each phase. Meanwhile, the back cone is designed by large glide angle to ensure fast idling discharge.
5. With the unique continuous trace design during mixing, the concrete residual amount is less than or equal to 0.4%.
Cab
1. The prepositive cab is set on one side of the hopper, with good closeness, anti-falling and anti-tilting protective system. Air conditioning, rear view camera and other functions are optional.
2. A single handle can complete all hydraulic operations and the longitudinal no resistance design is used to make the operation more flexible.
3. The microcomputer controlled worktable makes the water temperature, the oil temperature, the current all be clear at a glance.
4. There are two interlinked limit switches at the front and rear of the control system, which improves the security.
5. The seat can be adjusted to make the driving experience more comfortable.

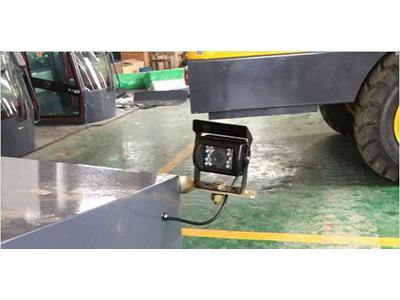

Rear view camera

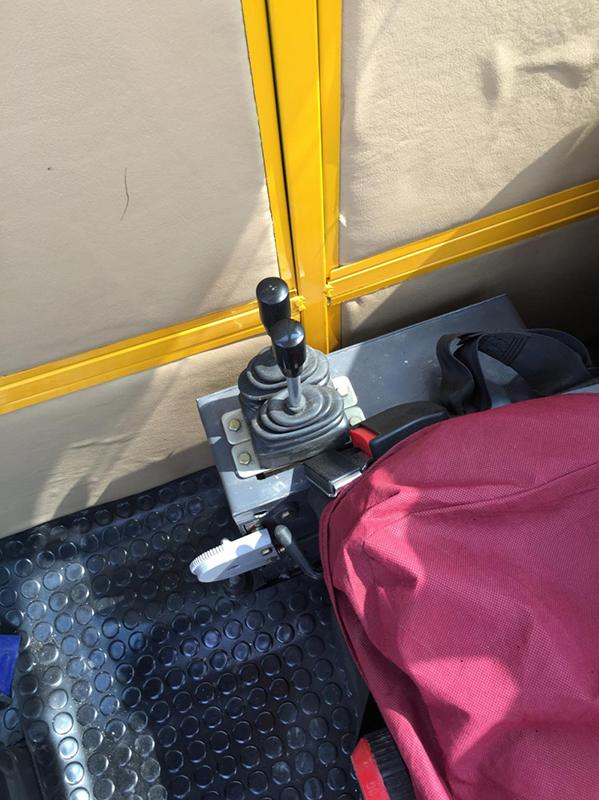

Operating handle

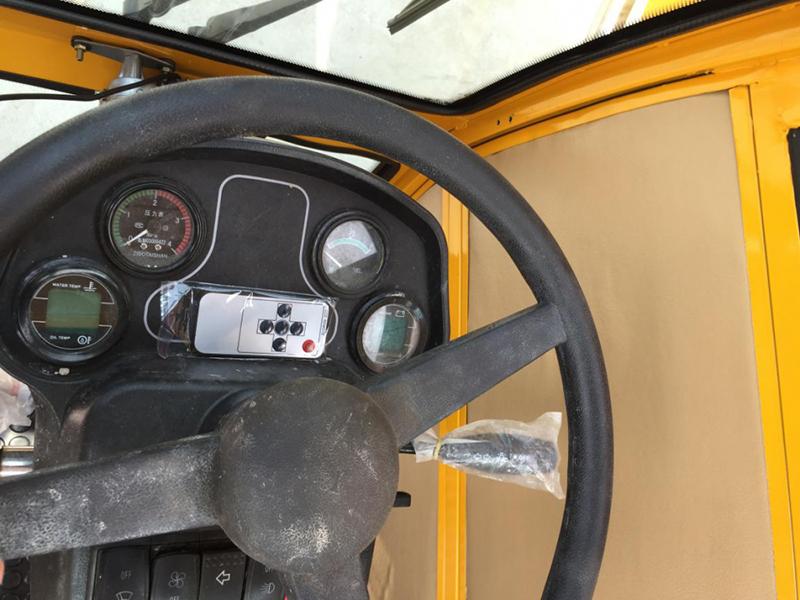

Worktable

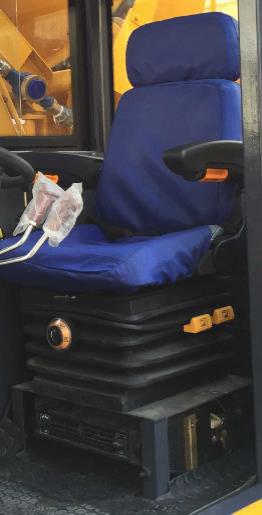

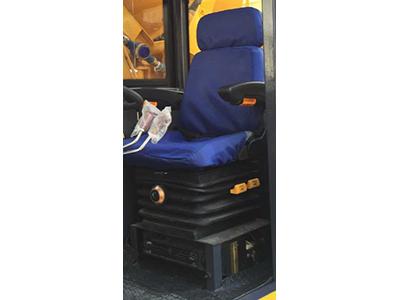

Seat
Convenient waterway system
1) With integrated control system, the waterway has one inlet and multiple outlets, convenient and quick.
2) The water tank with internal container increases the service life by 50%.
Detailed parameters
1. Mixing Drum
Loader bucket capacity
0.4m3
Output capacity
1.6M3
Bank Angle
16 °
2. Engine
Type
Yunnei
Rated Power/RPM
60KW/2200RPM
Max. Torque/RPM
360N.M/1400RPM
Cylinder
4
Starter
Electric
Cooling type
water cooling
3. chute
Swing Angle
≥50°
Angle control
Hydraulic
