Recommended application
The loading weight of the ZL-10A four wheel drive loader is 1000kg, with a bucket capacity of 0.5m3. The engine is Changchai brand four cylinder diesel engine that has low fuel consumption and powerful function, cooperated with full hydraulic operation design, greatly improving the loader’s working efficiency. Accordingly, it can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

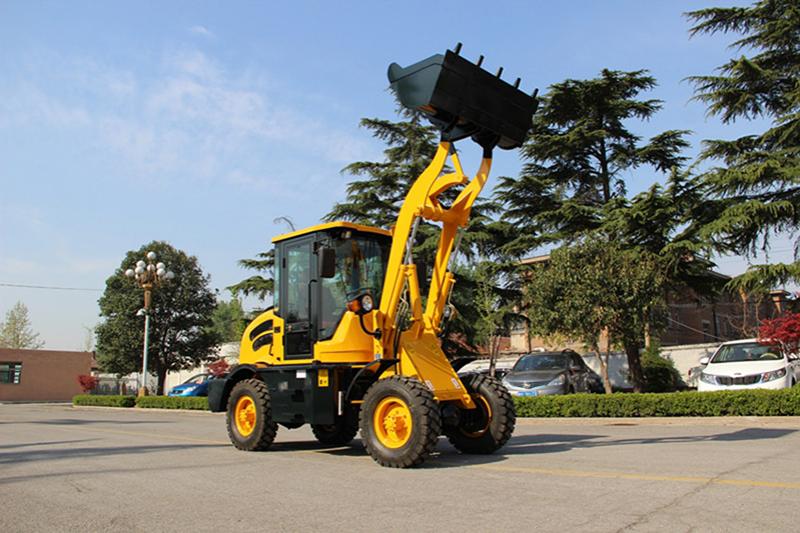

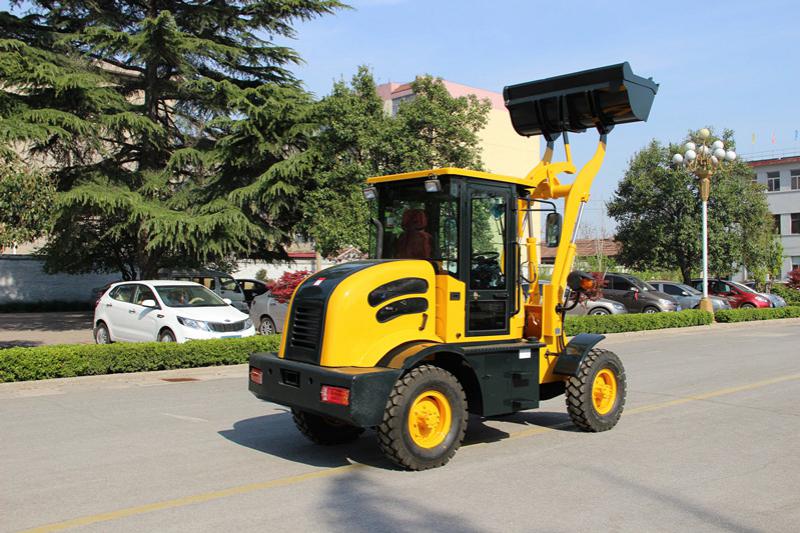

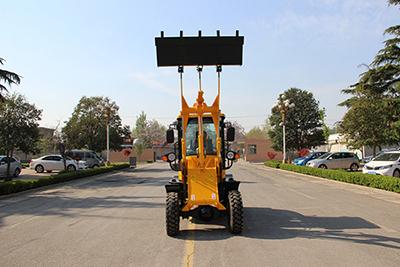

Front bucket
Front bucket
Technical parameters
Rated loading weight
1000kg
Rated bucket capacity
0.5m3
Rated power/Rated speed
20KW/2200rpm
Bucket width
1500mm
Track base
1215mm
Wheel base
1985mm
Min. turning radius(outside of rear wheels)
4200mm
Min. Ground clearance
250mm
Dump height fully raised
2300mm
Reach fully raised
850mm
Lifting time
4s
Hydraulic cycle time
8s
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
22KN
Operating weight
2850kg
Overall dimensions(LxWxH)
4750x1500x2530mm
Detailed information
Engine model
CHANGCHAI 385
Engine type
In-line arrangement, water cooled, three-stroke diesel engine
Engine starting mode
Electric
Driving mode
Four-wheel drive
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
8.25-16
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ
Delivery time
20 days after confirm the order
Supply ability
100 units per month

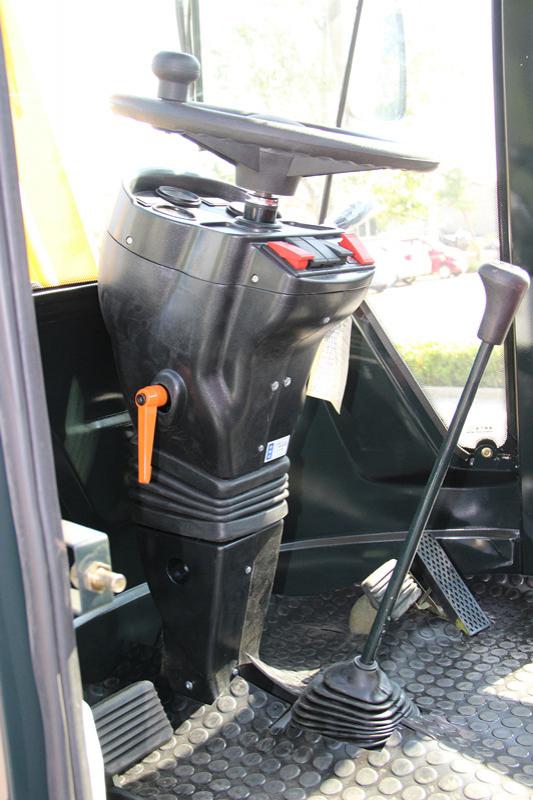

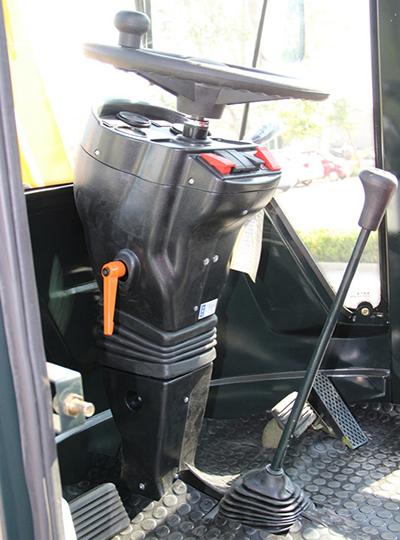

Cab

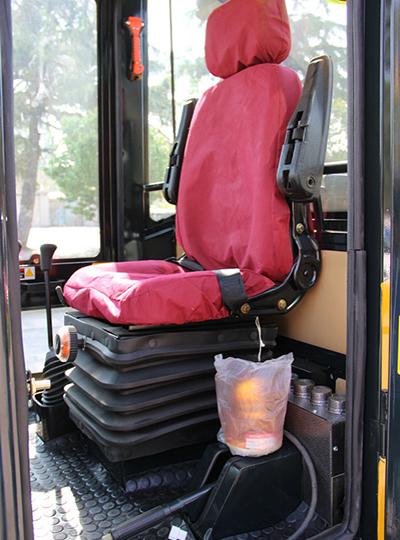

Seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
