Recommended application

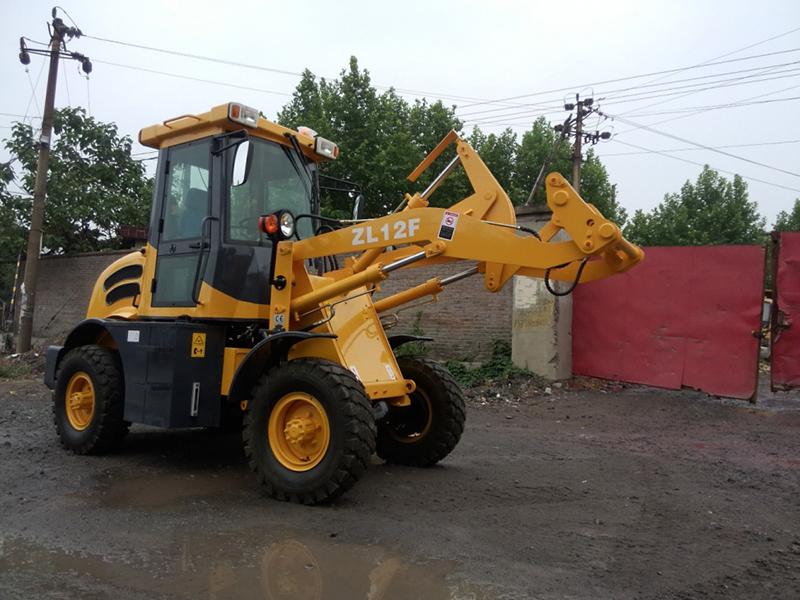

The loading weight of the ZL-12F wheel loader is 1200kg. The turning radius of the loader is 45m, the lifting time of the bucket being only 4s, which can adapt to flexible operation in narrow space. Accordingly, it can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments for jobs of different functions, such as snow bucket, fork.
Technical parameters
Rated loading weight
1200kg
Rated bucket capacity
0.6m3
Rated power
37KW
Rated speed
2200rpm
Bucket width
1700mm
Track base
1400mm
Wheel base
2005mm
Min. turning radius(outside of rear wheels)
4500mm
Min. Ground clearance
260mm
Dump height fully raised
2650mm
Reach fully raised
1020mm
Lifting time
4S
Hydraulic cycle time
8S
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
36KN
Operating weight
3400kg
Overall dimensions (LxWxH)
4800x1700x2720mm
Detailed information
Driving mode
Four-wheel drive
Engine model
CHANGCHAI 4L68
Engine type
In-line arrangement, water cooled, four-cycle diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
12.00-16
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ
Delivery time
25 days after confirm the order
Supply ability
100 units per month

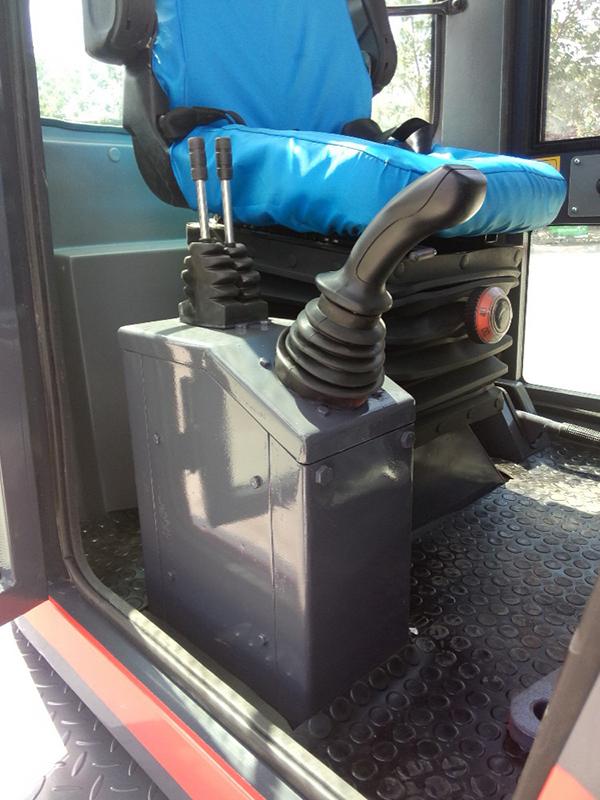

Operating lever

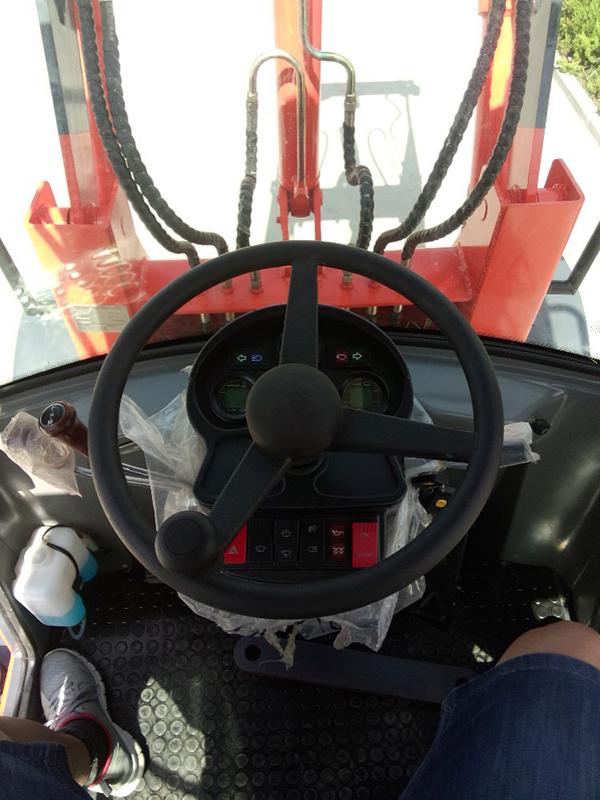

Operating panel

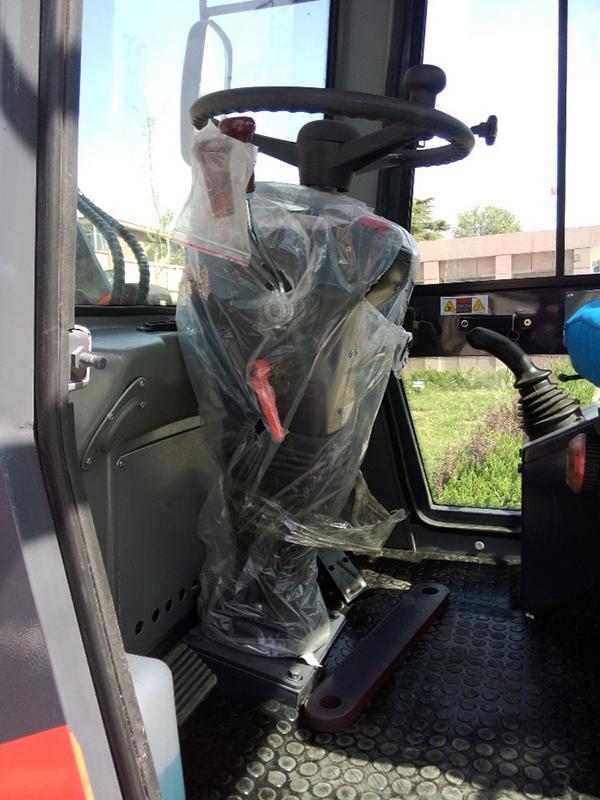

Steering wheel

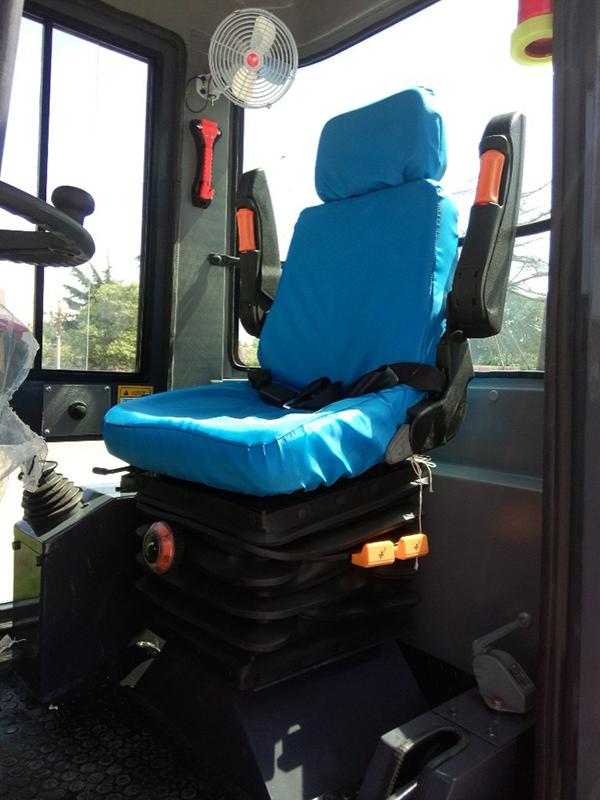

Adjustable seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
