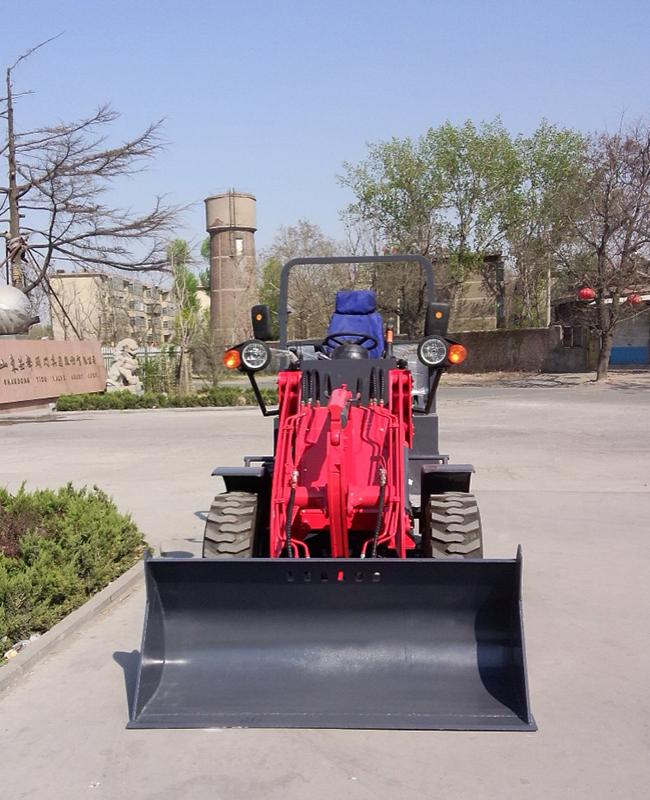

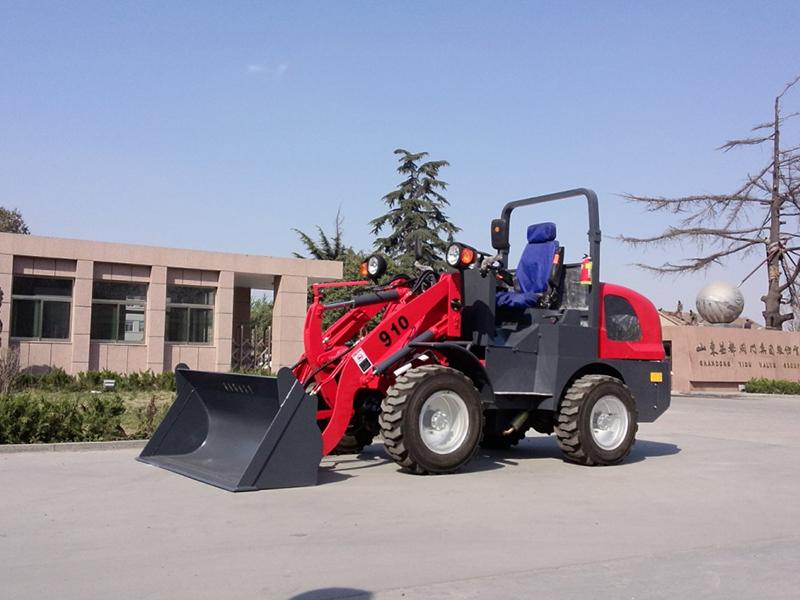

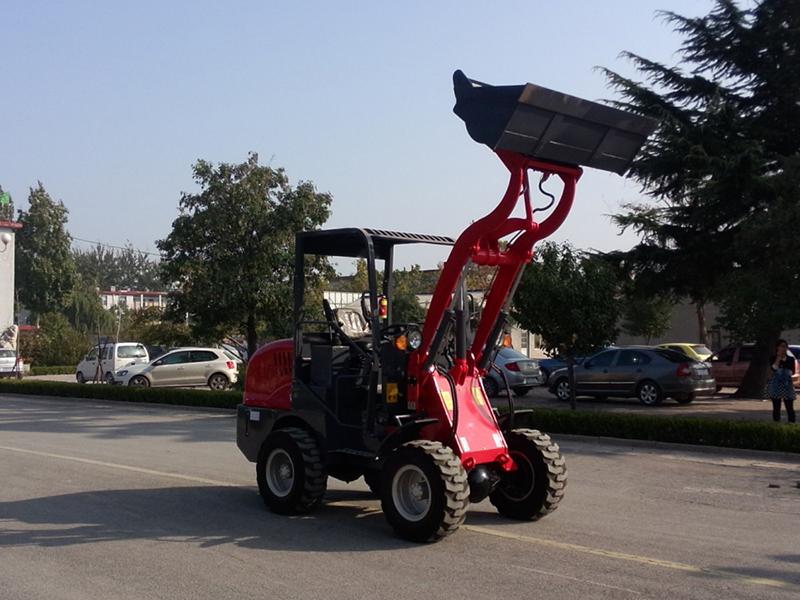

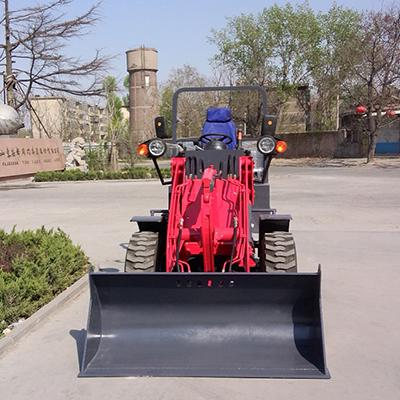

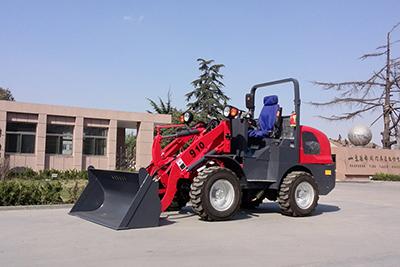

The bucket capacity of the HY-910 wheel loader is 0.54m3, and the whole process that the bucket from lifted to lowered, and then to the completion of unloading, only needs 9s, thus the working efficiency is excellent. It can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
According to customers’ requirements, fast connector can be equipped for mounting, switching prepositive loader mount attachments, which can expand the application scope and improve the working efficiency.
Technical parameters
Rated loading weight
1000kg
Rated bucket capacity
0.54m3
Rated power
36.8KW
Rated speed
2400rpm
Bucket width
1500mm
Track base
1160mm
Wheel base
1710mm
Min. turning radius(outside of rear wheels)
3750mm
Min. Ground clearance
230mm
Dump height fully raised
2420mm
Reach fully raised
850mm
Lifting time + Dumping time + Lowering time
9s
Steering angle
35°
Max. Breakout Force
35KN
Operating weight
2700kg
Overall dimensions(L×W×H)
4450×1430×2370(2600)mm
Detailed information
Driving mode
Four-wheel drive
Engine model
XINCHAI 490(EURO III)
Engine type
In-line arrangement, water cooled, four-stroke diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
12-16.5 wide tyre
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin , 3Units/40's HQ
Delivery time
20 days after confirm the order
Supply ability
100 units per month

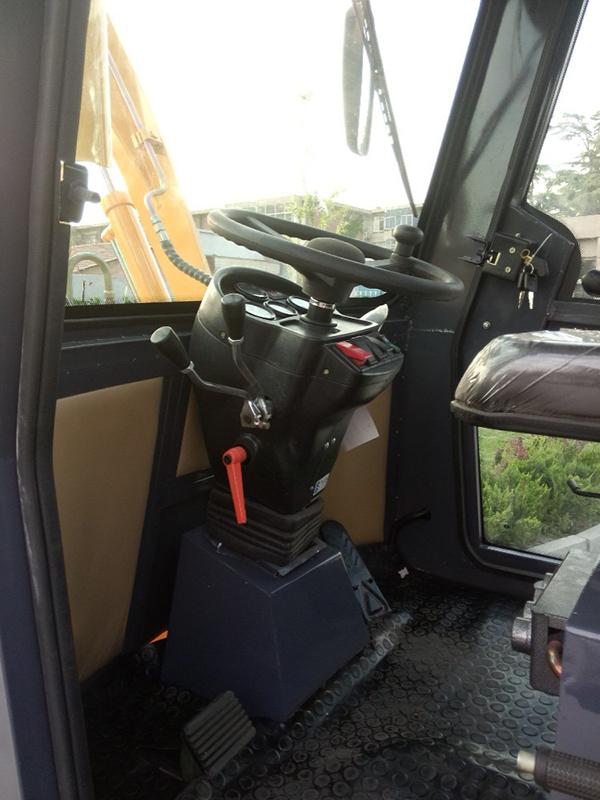

Steering wheel

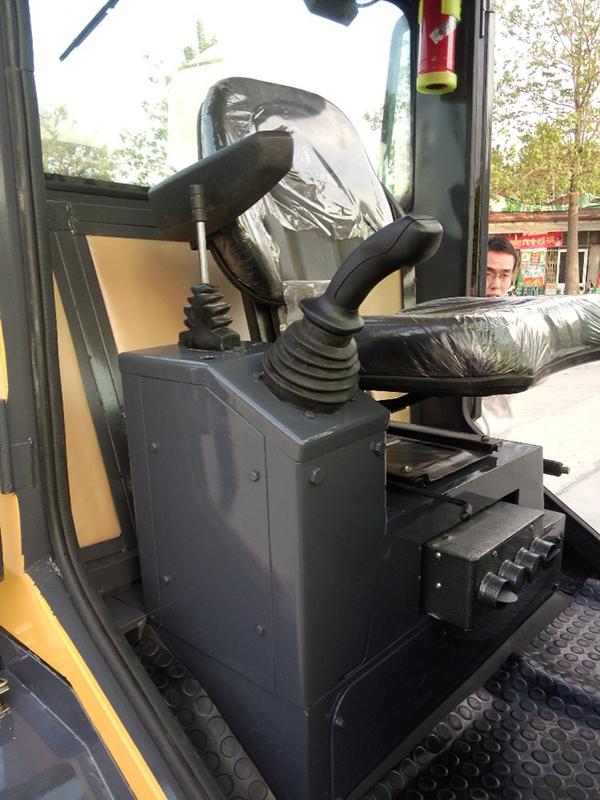

Operating lever

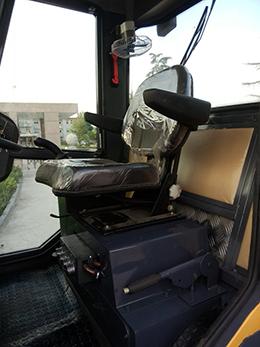

Cab
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
