Recommended application

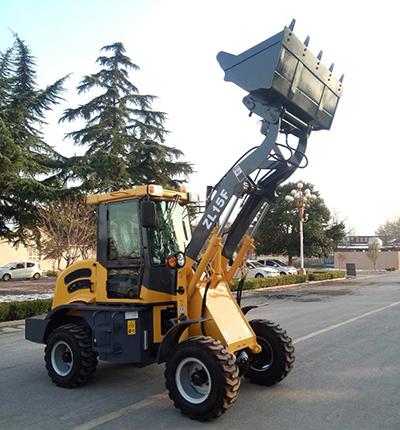

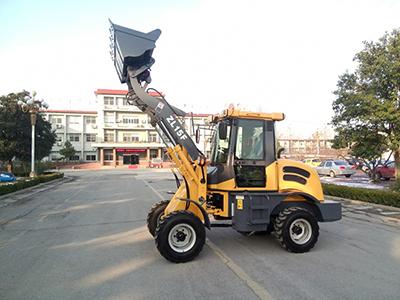

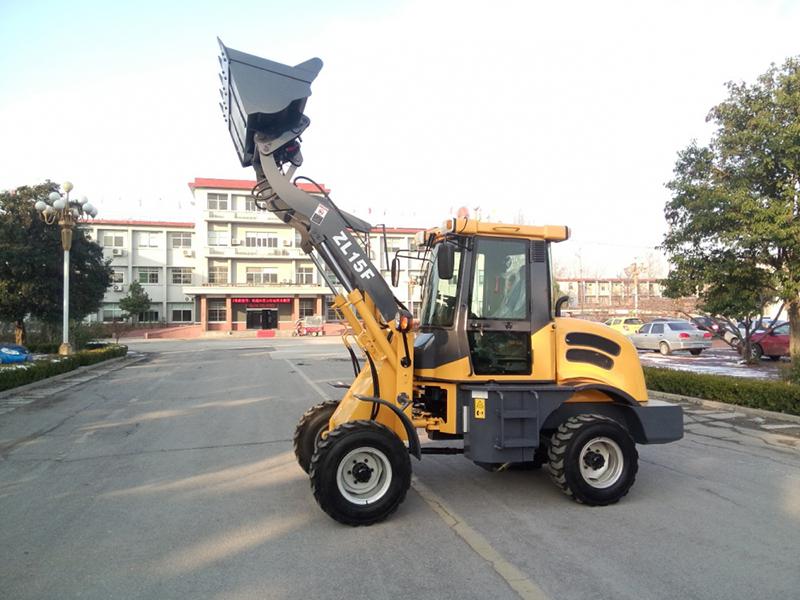

The loading capacity of the ZL-15F four wheel drive loader is 1500kg, equipped with four cylinder diesel engine and specially designed drive shaft, and thus has strong cross-country and climbing capability, which can be widely used in the construction of highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.
The bucket adopts the convenient tailgate design to prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

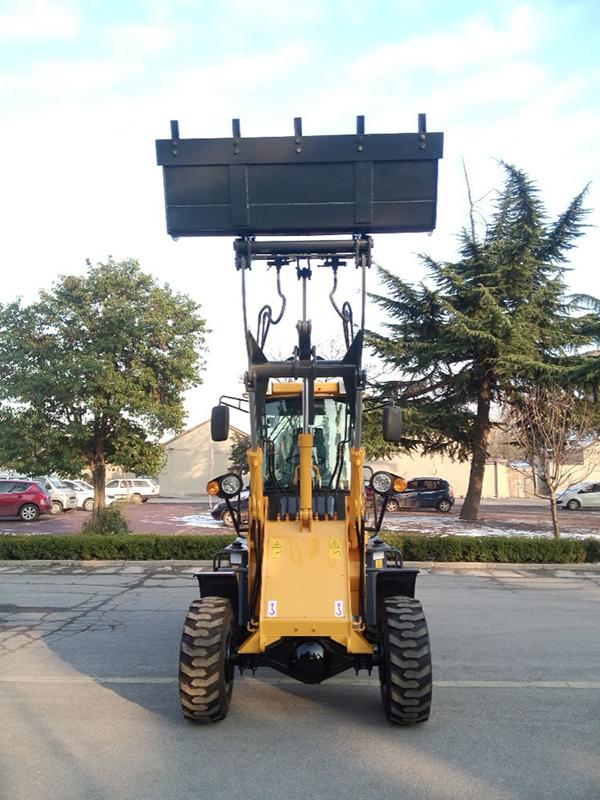

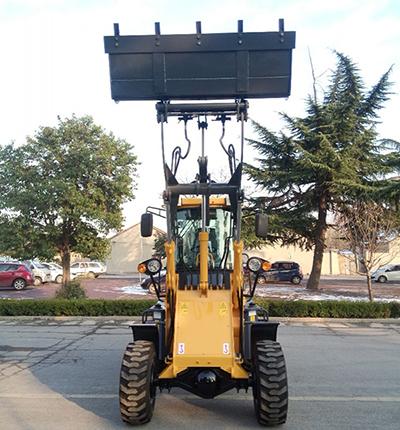

Front bucket

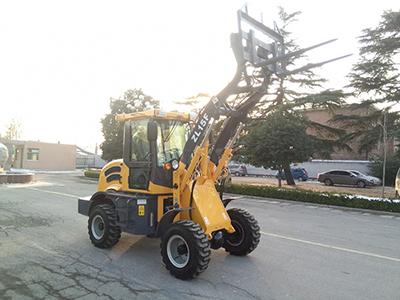

Replaceable fork
Technical parameters
Rated loading weight
1500kg
Rated bucket capacity
0.8m3
Rated power
36.8KW
Rated speed
2650rpm
Bucket width
1700mm
Track base
1400mm
Wheel base
1950mm
Min. turning radius(outside of rear wheels)
4400mm
Min. Ground clearance
270mm
Dump height fully raised
2580mm
Reach fully raised
860mm
Lifting time
< 5.0S
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
42KN
Maximum Speed
21km/h
Operating weight
3500kg
Overall dimensions (LxWxH)
4870x1750x2650mm
Detailed information
Driving mode
Four-wheel full hydraulic drive
Transmission gear box form
2 gear hydraulic variable speed changes
Engine model
XINCHAI 498(EURO III)
Engine type
In-line arrangement, water cooled, four-stroke diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
12-16.5 wide tyre
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin , 3Units/40's HQ
Delivery time
20 days after confirm the order
Supply ability
100 units per month

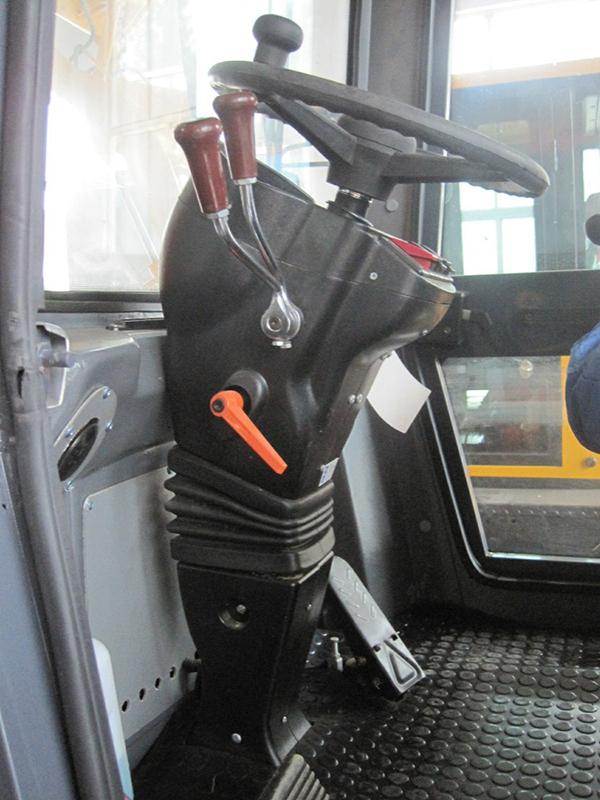

Operating panel

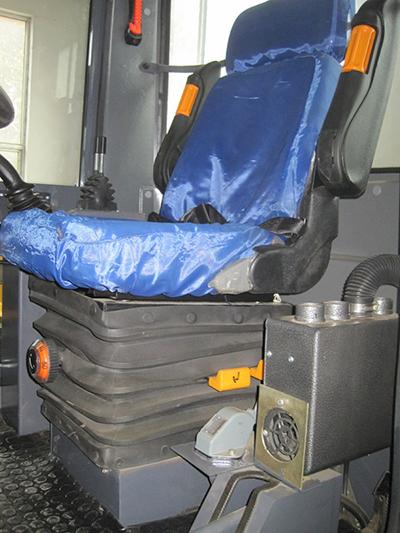

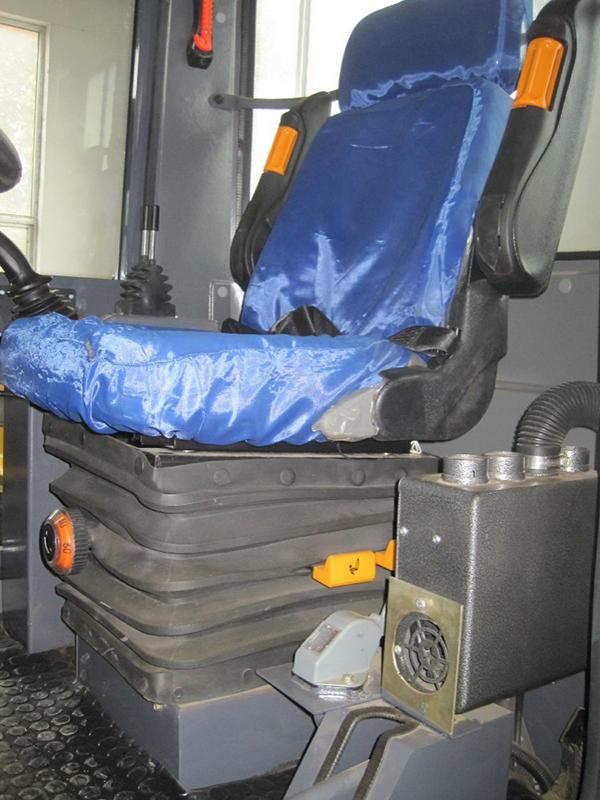

Seat

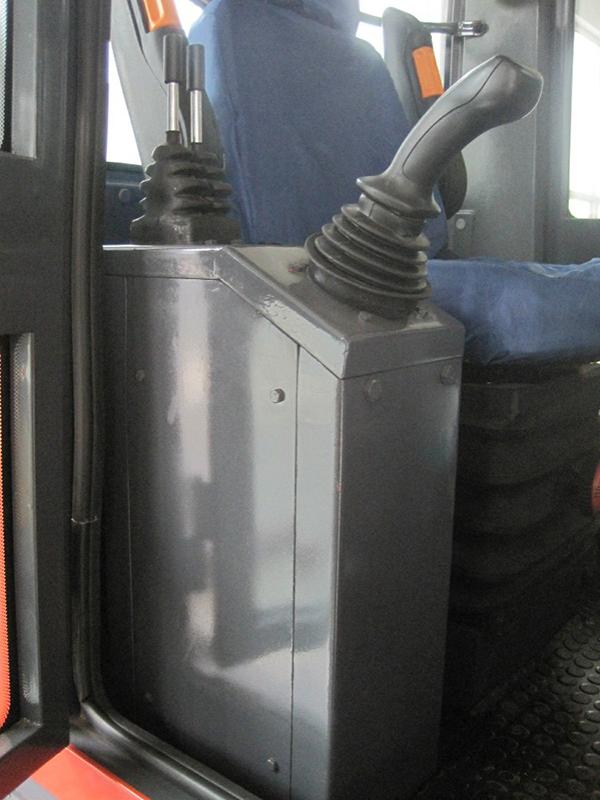

Operating lever
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
