Recommended application

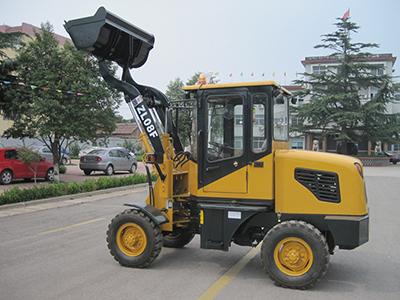

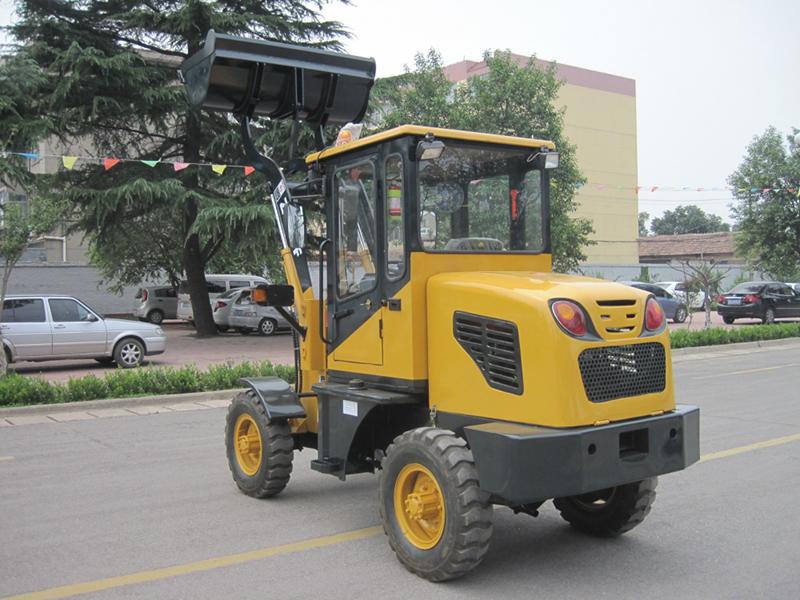

The loading weight of the ZL-08F wheel loader is 800kg. with small turning radius, the wheel loader can adapt to operations in narrow space and thus be widely used in the construction of agricultural engineering as well as medium and small buildings, such as highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket adopts the convenient tailgate design, which can prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

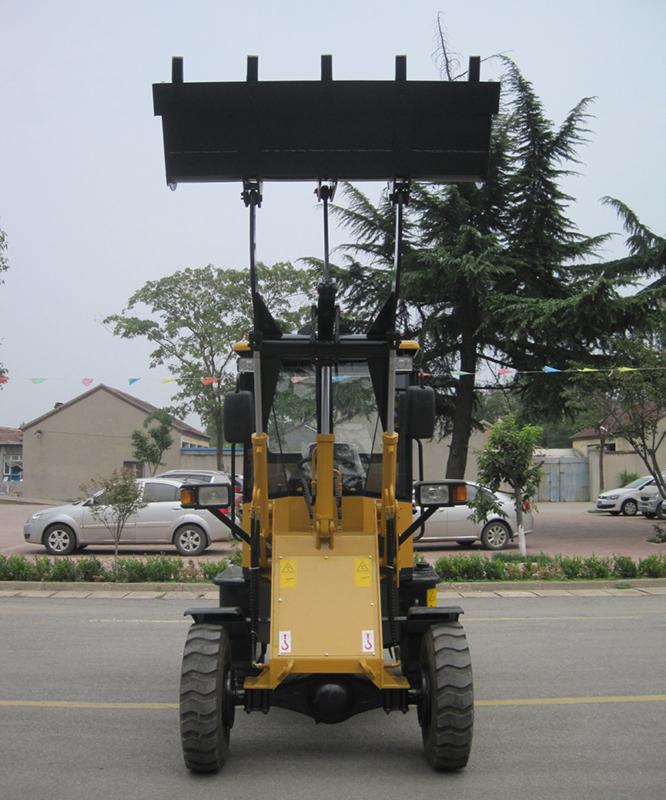

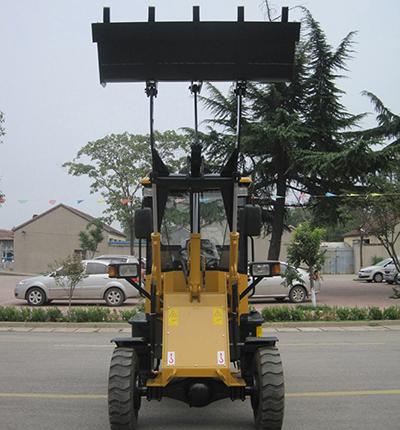

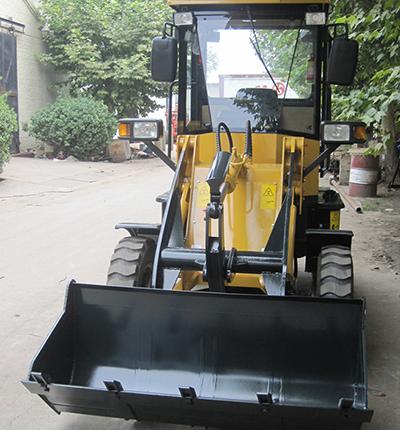

Front bucket

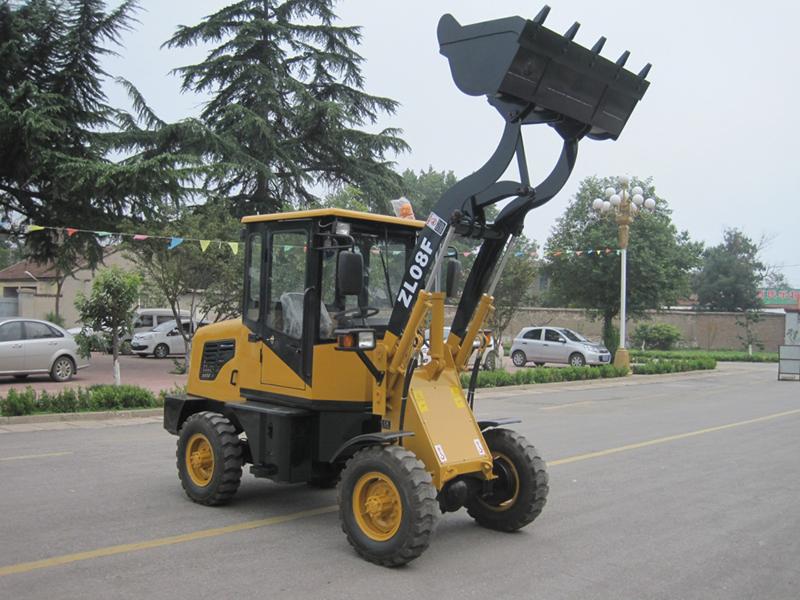

Front bucket

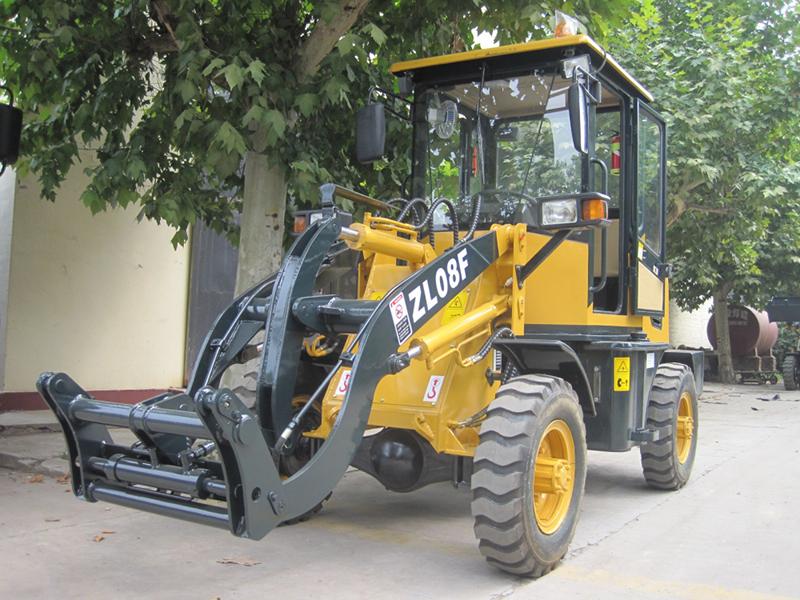

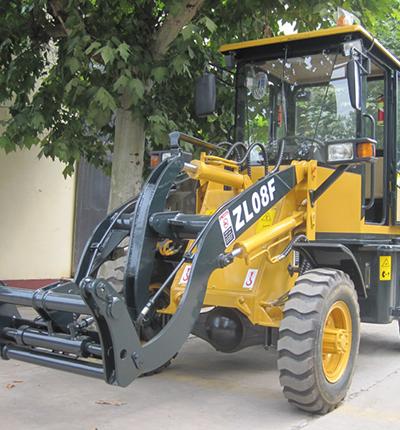

Fast connector
Technical parameters
Rated loading weight
800kg
Rated bucket capacity
0.4m3
Bucket width
1400mm
Track base
1285 mm
Wheel base
2170mm
Min. turning radius(outside of rear wheels)
4600mm
Min. Ground clearance
240mm
Dump height fully raised
2300mm
Reach fully raised
750mm
Lifting time
4S
Hydraulic cycle time
9S
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
28KN
Operating weight
2400kg
Overall dimensions (LxWxH)
4700x1600x2350 mm
Detailed information
Driving mode
Four-wheel drive
Engine model
CHANGCHAI CZ2102 /L28
Engine type
In-line arrangement, water cooled, two-cycle diesel engine
Engine starting mode
Electric
Rated power /Rated speed
25KW/2300rpm,20kw/2200rpm
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
7.50-16
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP, 3Units/40's HQ
Delivery time
15 days after confirm the order
Supply ability
100 units per month

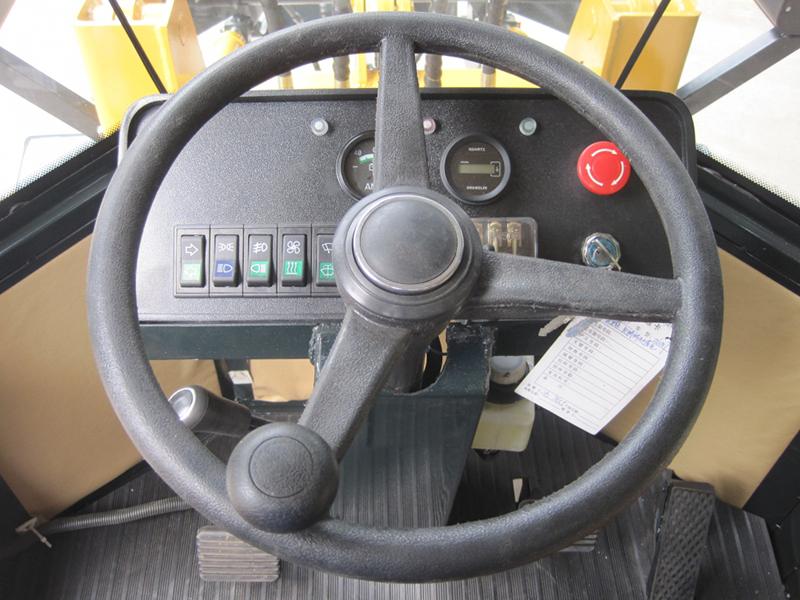

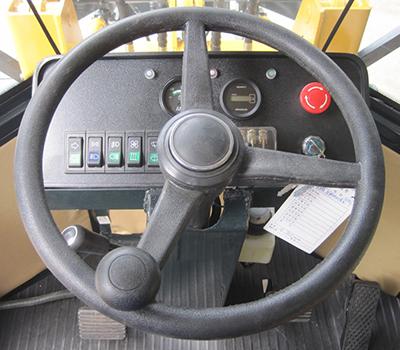

Cab

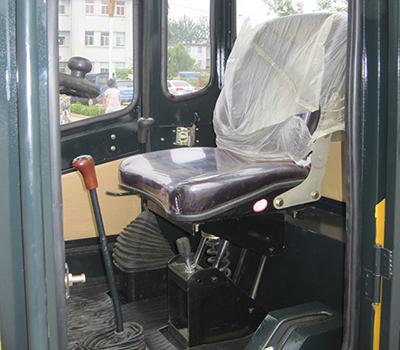

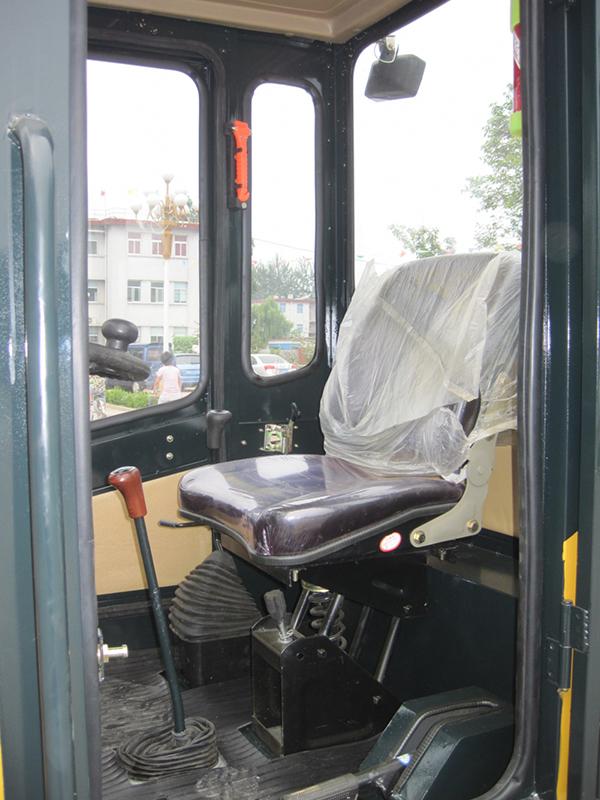

Seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
