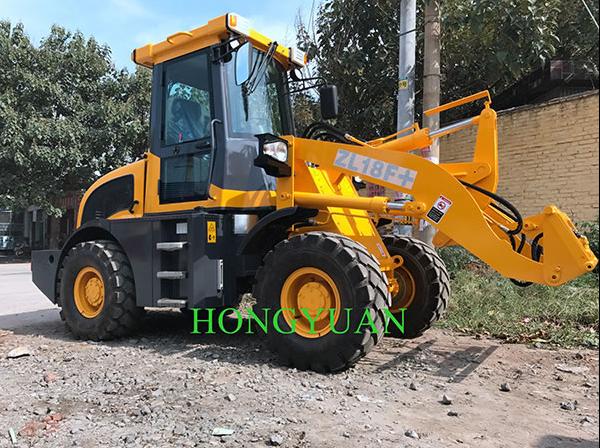

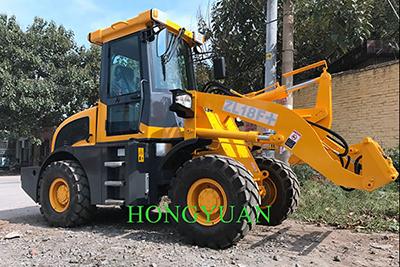

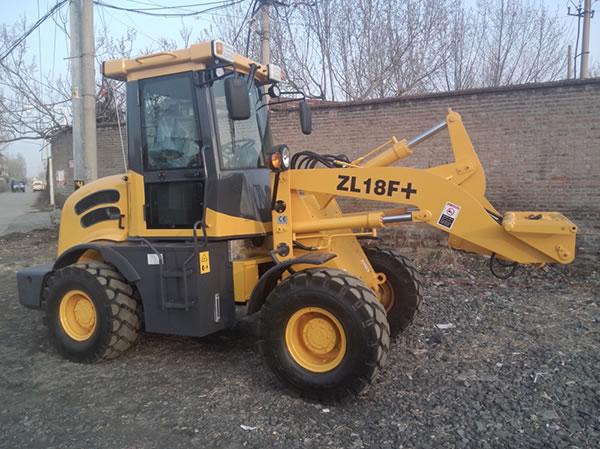

The loading weight of the ZL-18F four wheel drive loader is 1800kg. The bucket has a capacity of 1.0m3, which can be raised to the height of 2300mm in 4s under full load conditions, and the operation is flexible. Consequently, the wheel loader can be widely used in the construction of highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.
The front bucket adopts the convenient tailgate design to prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

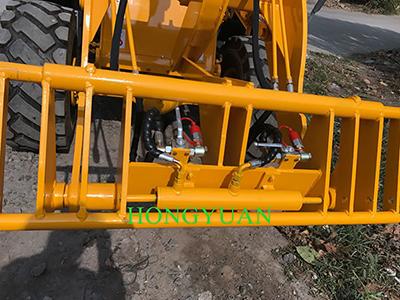

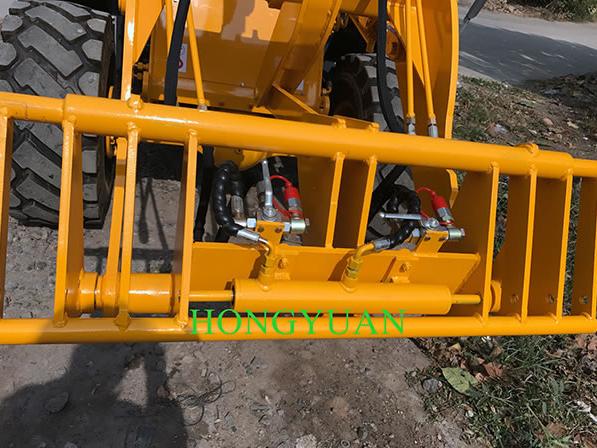

Fast connector

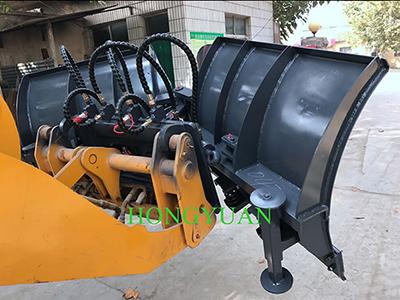

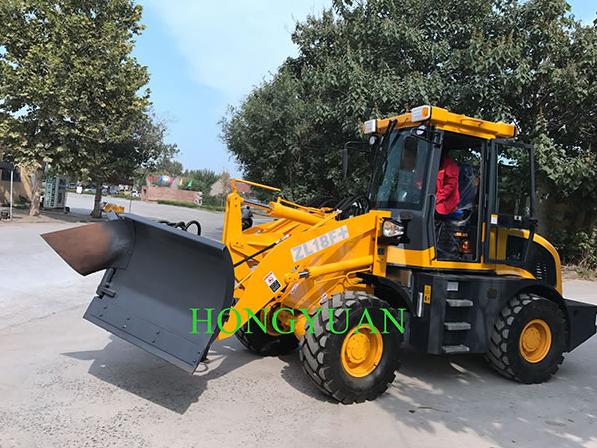

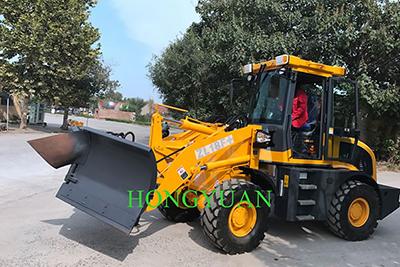

Replace V shape snow plow blade

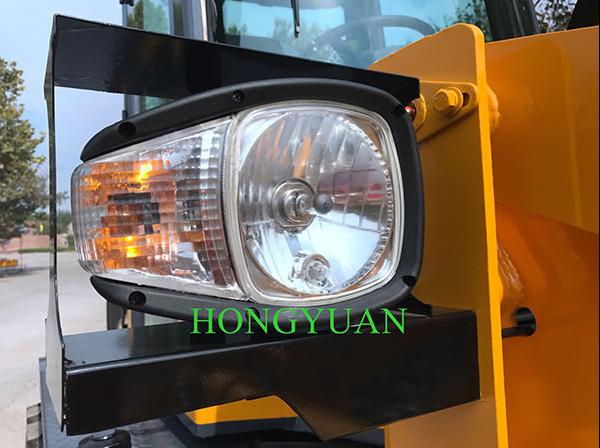

Lights
Technical parameters
Rated loading weight
1800kg
Rated bucket capacity
1.0m3
Rated power
47KW
Rated speed
2400rpm
Bucket width
2100mm
Track base
1470mm
Wheel base
2160mm
Min. turning radius(outside of rear wheels)
5200mm
Min. Ground clearance
340mm
Dump height fully raised
2800mm
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
38KN
Maximum Speed
25km/h
Operating weight
5310kg
Overall dimensions(L×W×H)
5630×2100×2850mm
Detailed information
Driving mode
Four-wheel full hydraulic drive
Engine model
WEICHAI 4102
Engine type
In-line, vertical, water cooling , four- stroke diesel engine
Engine starting mode
Electric
Brake mode
Air assist disc brake on 4 wheels
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
16/70-20
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin, 2Units/40's HQ
Delivery time
2 5 days after confirm the order
Supply ability
100 units per month
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
