Recommended application

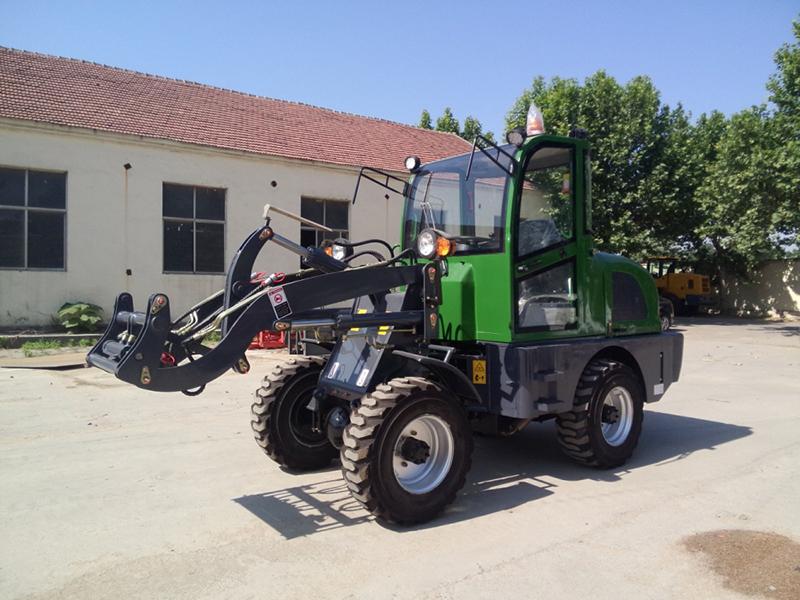

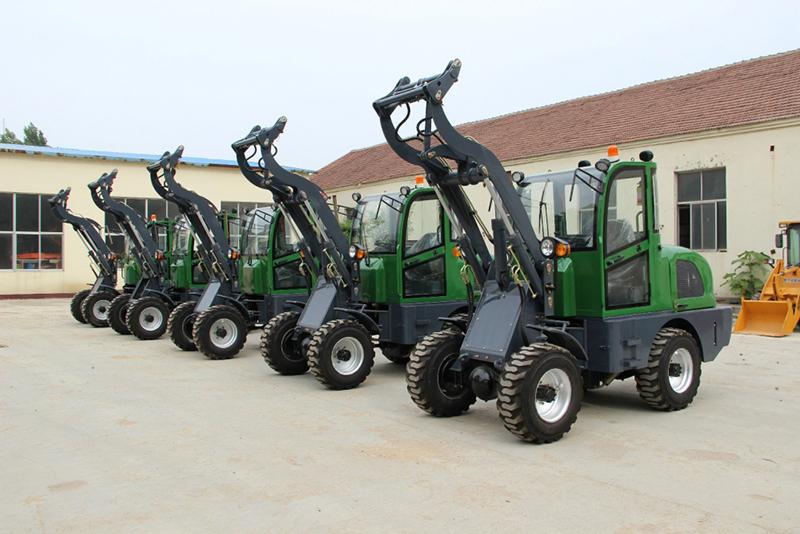

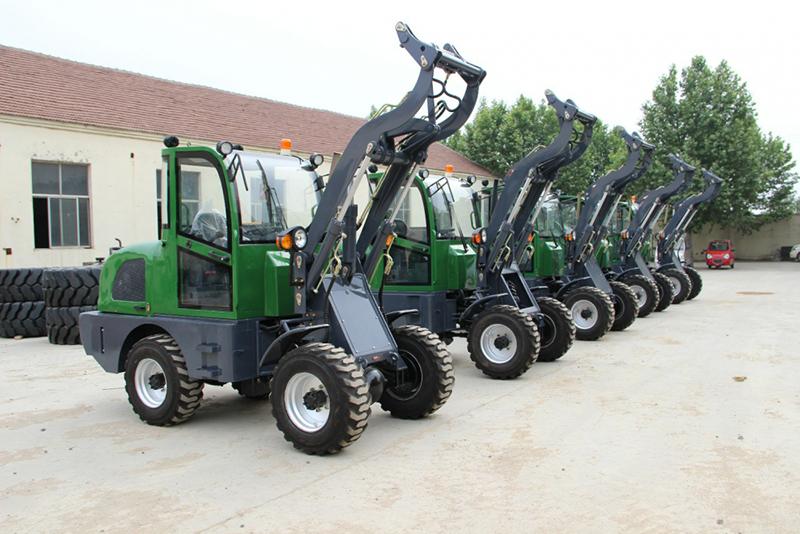

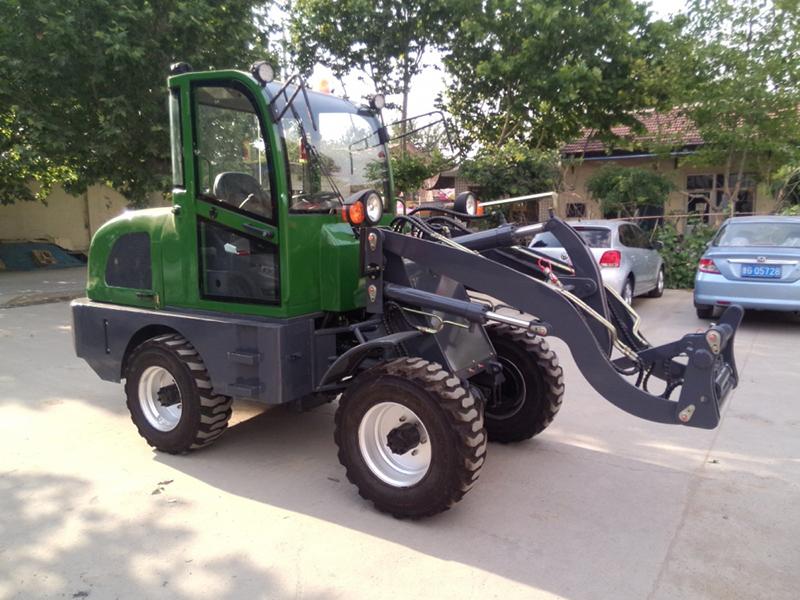

The bucket capacity of the HY-610 wheel loader is 0.5m3, and the rated loading weight is 1000kg. The machine adopts four wheel drive and has strong adaptability to working sites, which can be widely used in the construction of highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.
According to customers’ requirements, fast connector can be selected for mounting, switching prepositive loader mount attachments, so as to expand the application scope and improve the working efficiency.
Rated loading weight | 1000kg |
Rated bucket capacity | 0.5M3 |
Rated power | 25.2,33.7,and 35.7kW |
Rated speeds | 2200rpm |
Bucket width | 1550mm |
Track base | 1200mm |
Wheel base | 1750mm |
Min. swerve diameter | 4400mm |
Min. ground clearance | 240mm |
Dump height fully raised | 2650mm |
Lifting time | 4s |
Hydraulic cycle time | 9s |
Max. tilt angle | 30° |
Max. bucket breakout force, lift cylinder | 32KN |
Operating weight | 2500kg |
Dimension(L×W×H) | 4530×1500×2500mm |
Driving mode | Four-wheel drive |
Engine model | Yanmar4TNV-88- SYY / Yanmar4TNV94L-BVBKC /Perkins404D-22 |
Engine type | In-line arrangement, water cooled, four-stroke diesel Engine |
Engine starting mode | Electric |
Brake mode | Four-wheel hydraulic spread-shoed brake |
Color | According to the requirements of customers |
Tyre | 12-16.5 |
Delivery time | 25 days after confirm the order |
Supply ability | 100 units per month |
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
Index
four wheel drive loader, front end loader, bucket loader, heavy loader
