Recommended application

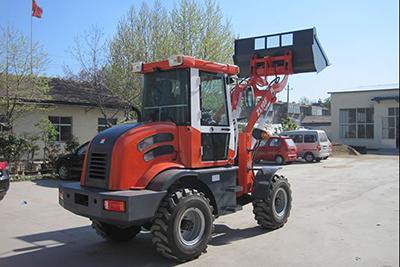

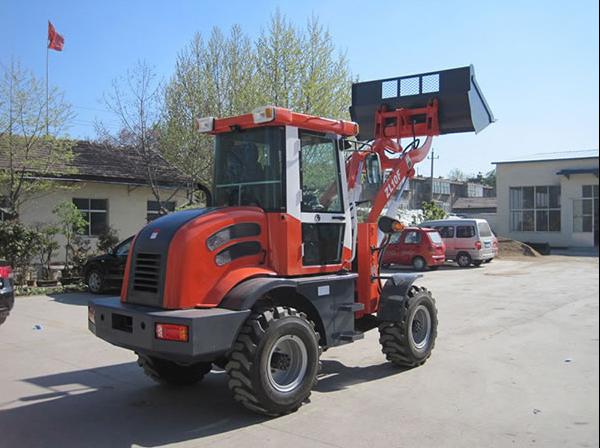

The loading weight of the ZL-10F front end wheel loader is 1000kg. The machine has a turning radius of 38.9m, the lifting time of the bucket being only 4s, which can adapt to flexible operation in narrow space. Consequently, the 1000kg front end wheel loader can be widely used in the construction of highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.

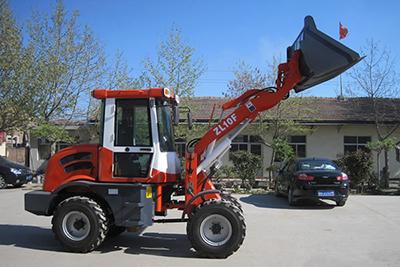

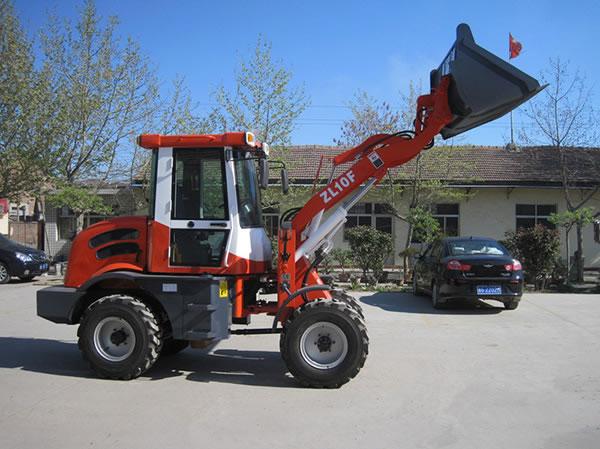

The bucket adopts the convenient tailgate design, which can prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

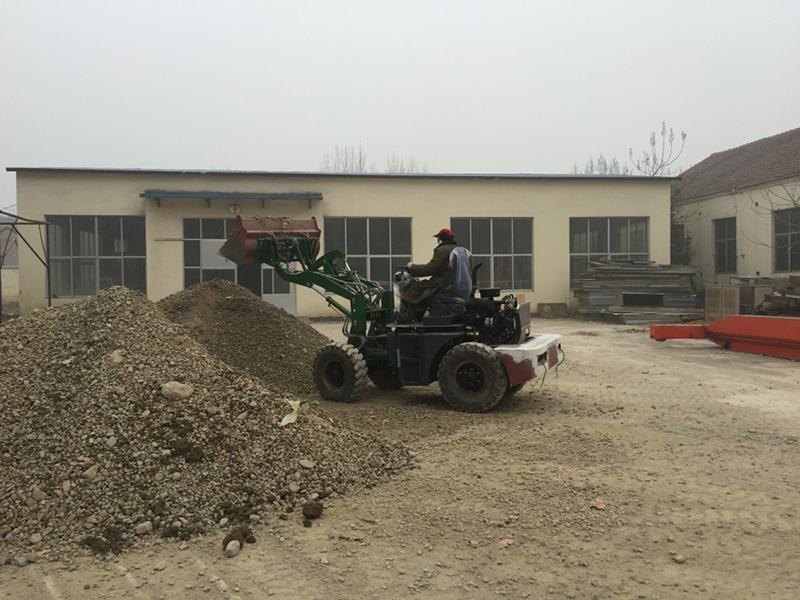

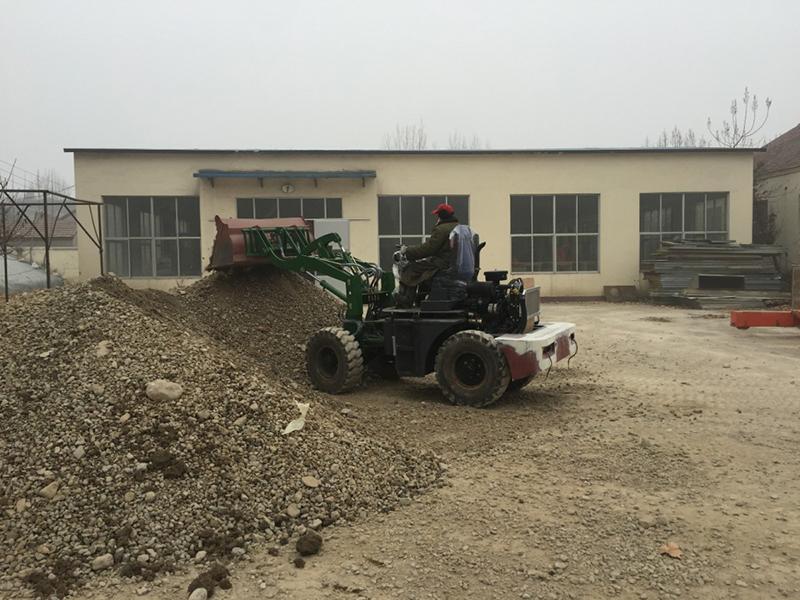

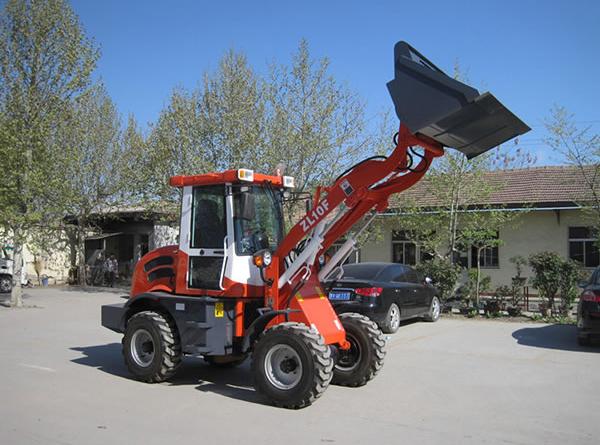

ZL-10F in the trial runRated loading weight | 1000kg |
Rated bucket capacity | 0.5m3 |
Rated power | 29KW |
Rated speed | 2200rpm |
Bucket width | 1600mm |
Track base | 1400mm |
Wheel base | 1580mm |
Min. turning radius(outside of rear wheels) | 3890mm |
Min. Ground clearance | 230mm |
Dump height fully raised | 2200mm |
Reach fully raised | 850mm |
Lifting time | 4S |
Hydraulic cycle time | 9S |
Max. Tilt angle | 30° |
Max. Bucket breakout, lift cylinder | 26KN |
Operating weight | 3300kg |
Overall dimensions(LxWxH) | 4750x1650x2720mm |
Driving mode | Four-wheel drive |
Engine model | CHANGCHAI 490 |
Engine type | In-line arrangement, water cooled, four-stroke diesel engine |
Engine starting mode | Electric |
Brake mode | Four-wheel hydraulic spread-shoed brake |
Warranty | 12 months after received the goods |
Color | According to the requirements of customers |
Tyre type | 8.25-16 |
Shipping port | Qingdao port, China |
Packing details | Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
Delivery time | 20 days after confirm the order |
Supply ability | 100 units per month |

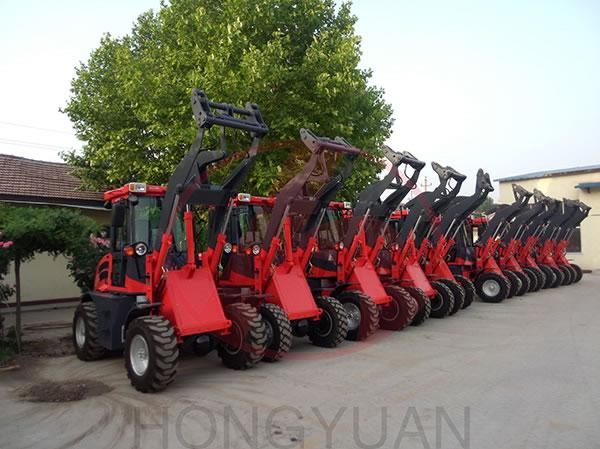

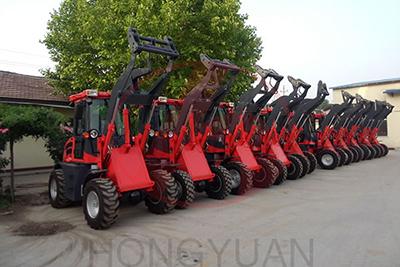

Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
