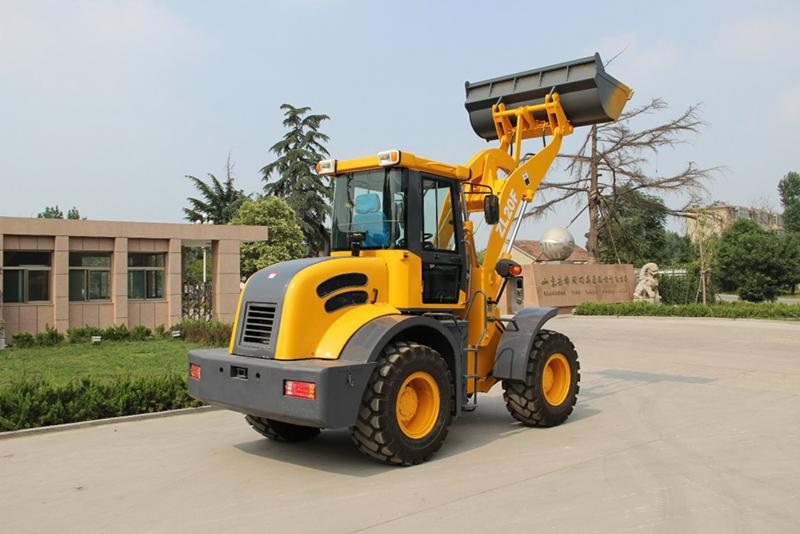

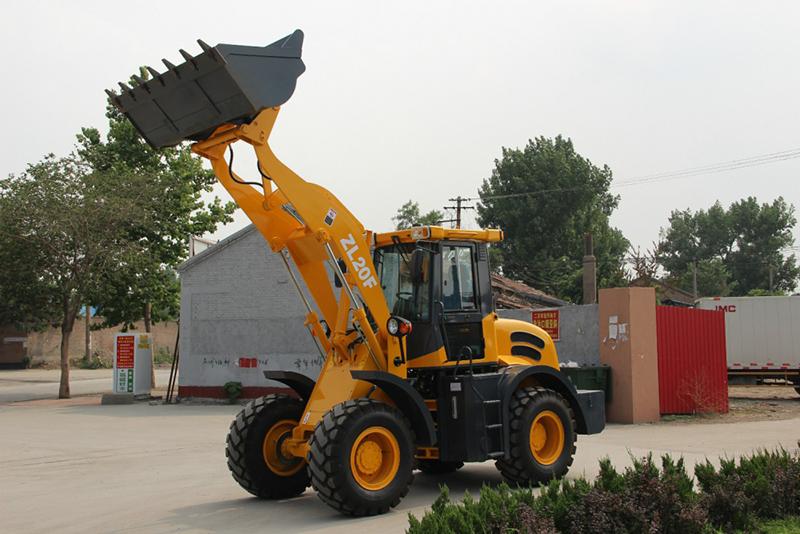

The loading weight of the ZL-20F four wheel drive loader is 2000kg. The bucket has a capacity of 1.0m3, which can be lifted to the height of 2800mm in 5s under full load conditions, operating flexibly. Therefore, it can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The front bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments for jobs of different functions, such as snow bucket, fork.
Technical parameters
Rated loading weight
2000kg
Rated bucket capacity
1.0m3
Rated power
60KW
Rated speed
2400rpm
The minimum circle diameter
310mm
Track base
1500mm
Wheel base
2350mm
Min. turning radius(outside of bucket s)
4600mm
Min. Ground clearance
350mm
Dump height fully raised
2800mm
Reach fully raised
1050mm
Lifting time
5.0s
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
60KN
Maximum Speed
25km/h
Operating weight
5900kg
Overall dimensions (L×W×H)
5800×2000×2750mm
Detailed information
Driving mode
Four-wheel full hydraulic drive
Engine model
LUOTUO 4108 /Cummins
Engine type
In-line arrangement, water cooled, four-stroke diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
16/70-20
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin, 2 Units/40's HQ
Delivery time
20 days after confirm the order
Supply ability
100 units per month

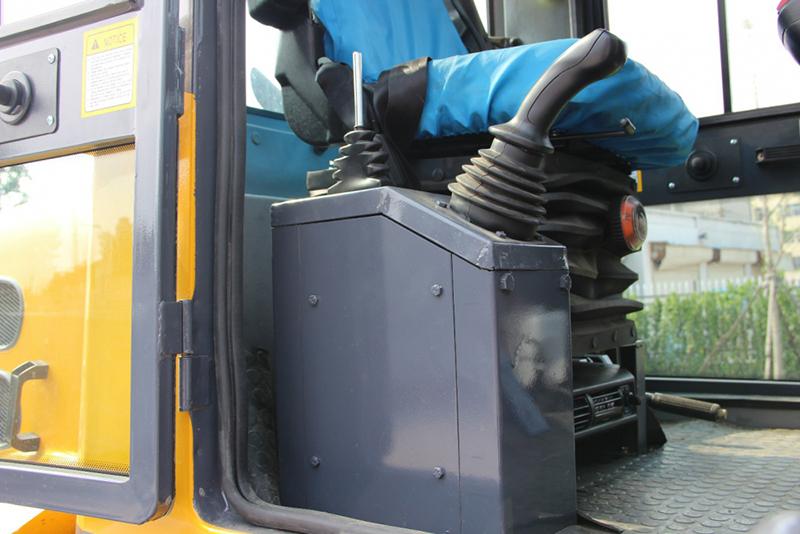

Operating lever

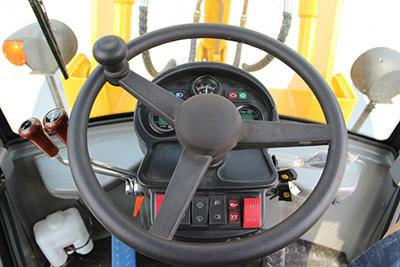

Steering wheel

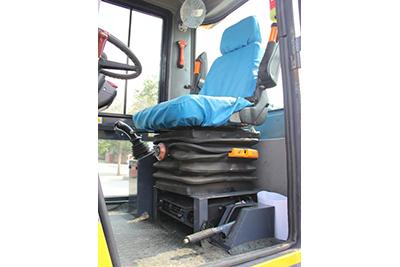

Adjustable seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
