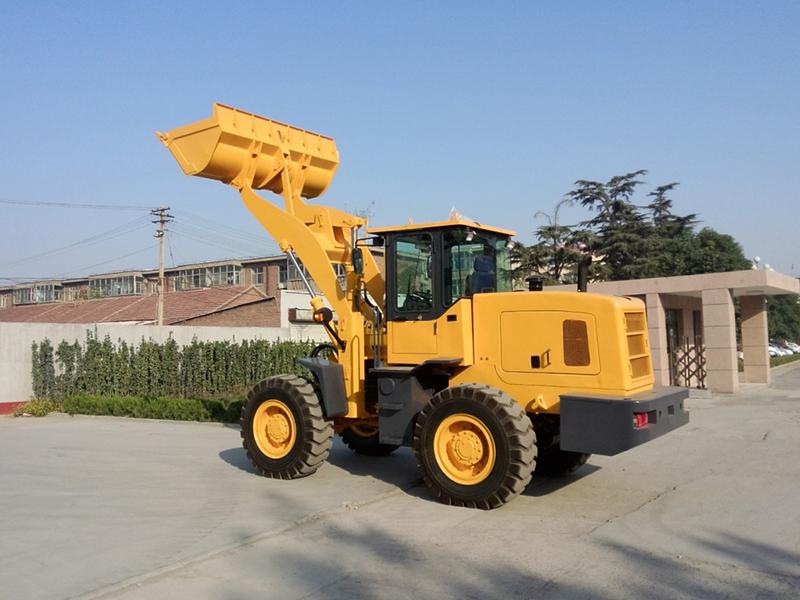

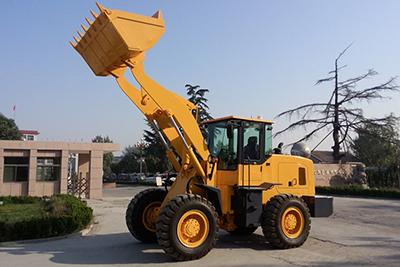

The loading weight of the ZL-30F wheel loader is 3000kg. with mere 5.7m turning radius, it can adapt to the operation in narrow space, and the whole process that the bucket from lifted to lowered, and then to the completion of unloading, only needs 11s, thus the working efficiency is excellent. It can be widely used in the construction of highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories and other agricultural engineering as well as medium and small buildings.
The front bucket adopts the convenient tailgate design to prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments such as snow bucket, fork, for jobs of different functions.
Technical parameters
Rated loading weight
3000kg
Rated bucket capacity
1.7m3
Rated power
92KW
Rated speed
2200rpm
Track base
1800mm
Wheel base
2760mm
Min. turning radius(outside of rear wheels)
5700mm
Dump height fully raised
3020/3250mm
Reach fully raised
1200mm
Lifting time + Lowering time + Unloading time
11s
Max. Bucket breakout, lift cylinder
138KN
Operating weight
9500kg
Overall dimensions (L×W×H)
7050×2430×3120mm
Detailed information
Driving mode
Four-wheel full hydraulic drive
Engine model
DEUTZ WP6G125E22
Engine type
In-line arrangement, water cooled , six-stroke diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
17.5-25
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/ 4 0's HQ with disassembled cabin
Delivery time
15 days after confirm the order
Supply ability
100 units per month

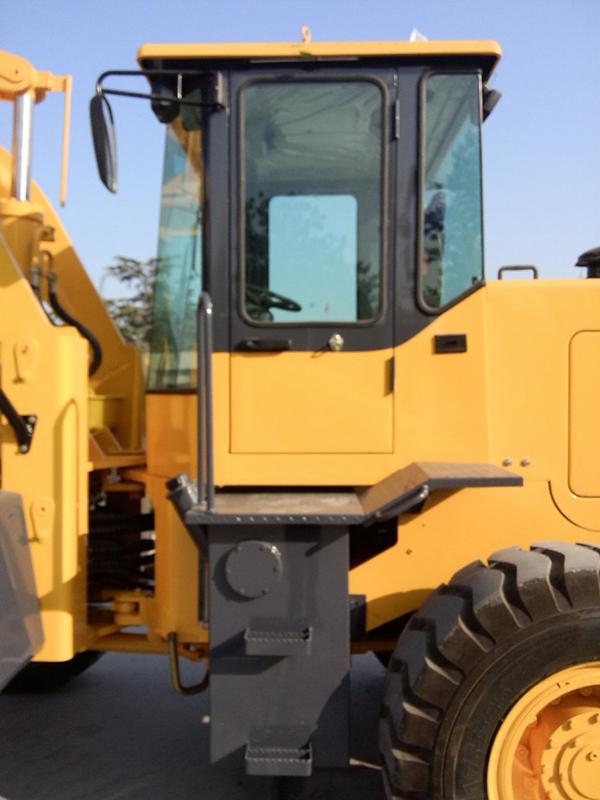

Cab

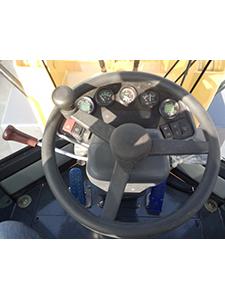

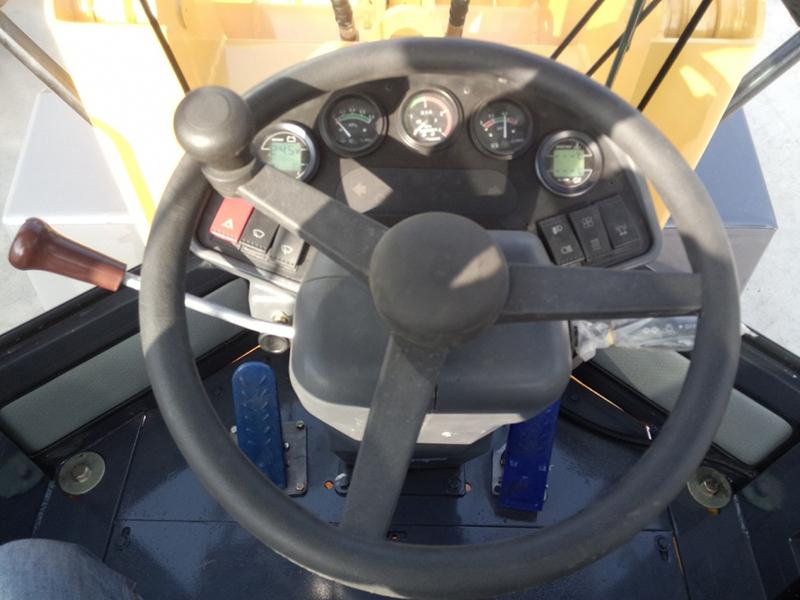

Operating panel

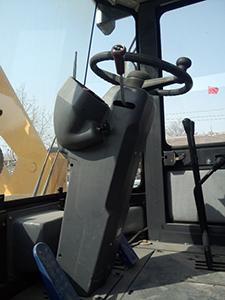

Steering wheel

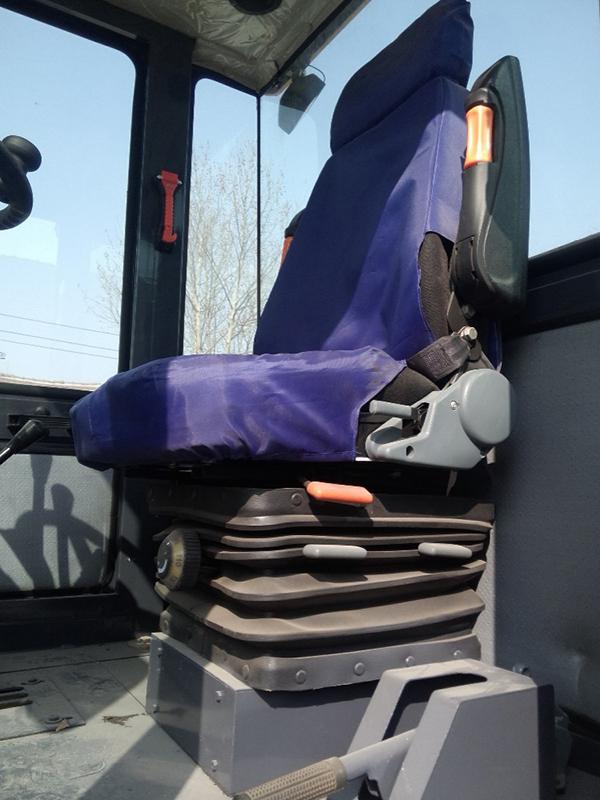

Adjustable seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
