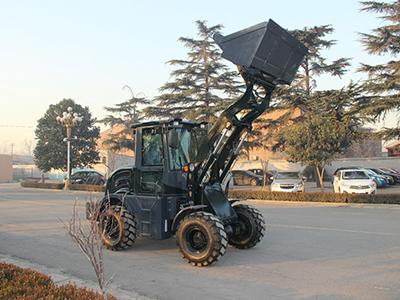

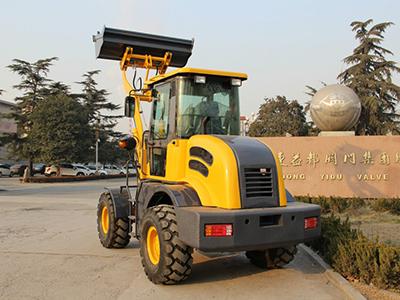

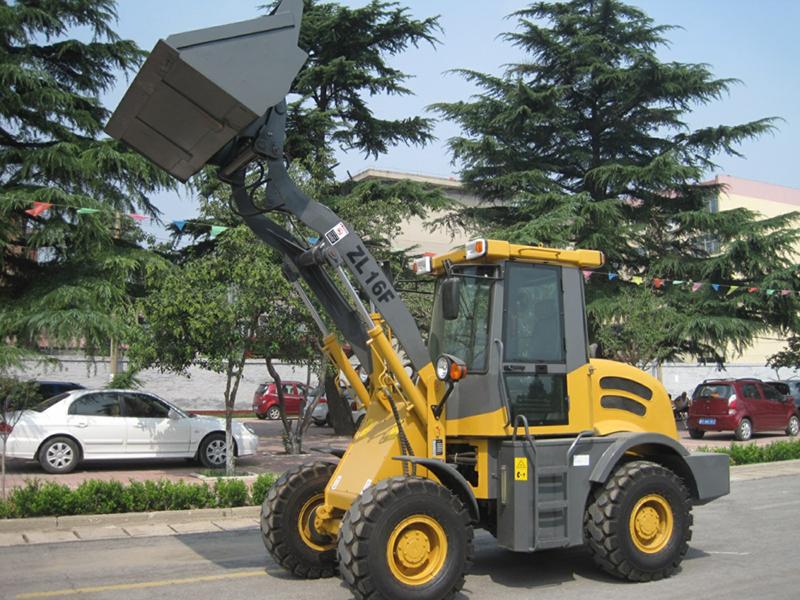

The loading weight of the ZL-16F wheel loader is 1600kg, of which the engine is EURO III standard four cylinder diesel engine, with rated power 36.8kW and powerful functions. Cooperated with four wheel drive and specially designed drive shaft, the loader is guaranteed with excellent obstacle crossing ability and working efficiency. Accordingly, it can be widely used in construction of agricultural engineering well as of medium and small buildings, such as highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments for jobs of different functions, such as snow bucket, fork.
Technical parameters
Rated loading weight
1600kg
Rated bucket capacity
0.8m3
Rated power
36.8KW
Rated speed
2500rpm
Bucket width
1750mm
Track base
1500mm
Wheel base
2100mm
Min. turning radius(outside of rear wheels)
4500mm
Min. Ground clearance
260mm
Dump height fully raised
2700mm
Max. Tilt angle
30°
Max. Bucket breakout, lift cylinder
36.8KN
Maximum Speed
21km/h
Operating weight
4150kg
Overall dimensions (LxWxH)
5300×1800×2750mm
Detailed information
Driving mode
Four-wheel full hydraulic drive
Transmission gear box form
2 gear hydraulic variable speed changes

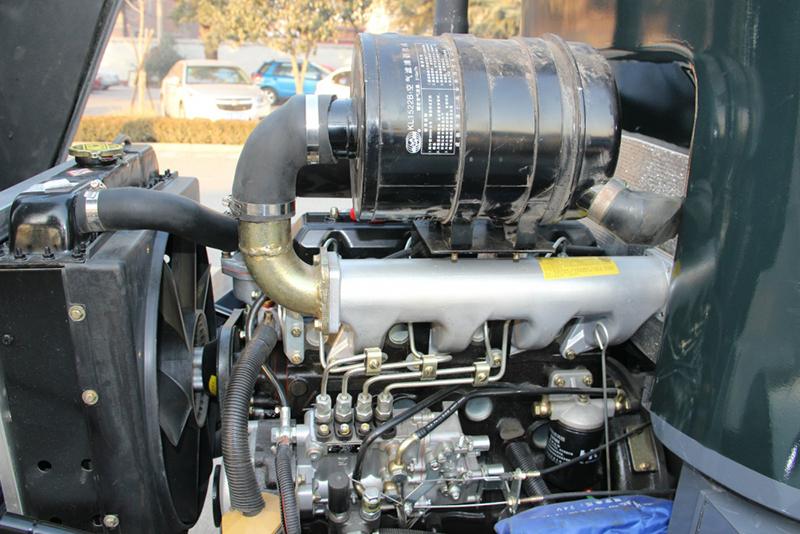

Engine model
XINCHAI 498BT(EURO III)
Engine type
In-line arrangement, water cooled, four-stroke diesel engine
Engine starting mode
Electric
Brake mode
Four-wheel hydraulic spread-shoed brake
Warranty
12 months after received the goods
Color
According to the requirements of customers
Tyre type
20.5/70-16
Shipping port
Qingdao port, China
Packing details
Nude package, 1Unit/20's GP with disassembled cabin , 3 Units/40's HQ
Delivery time
15 days after confirm the order
Supply ability
100 units per month

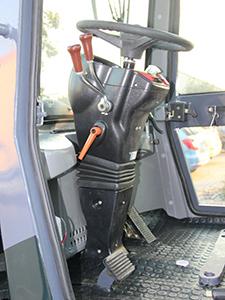

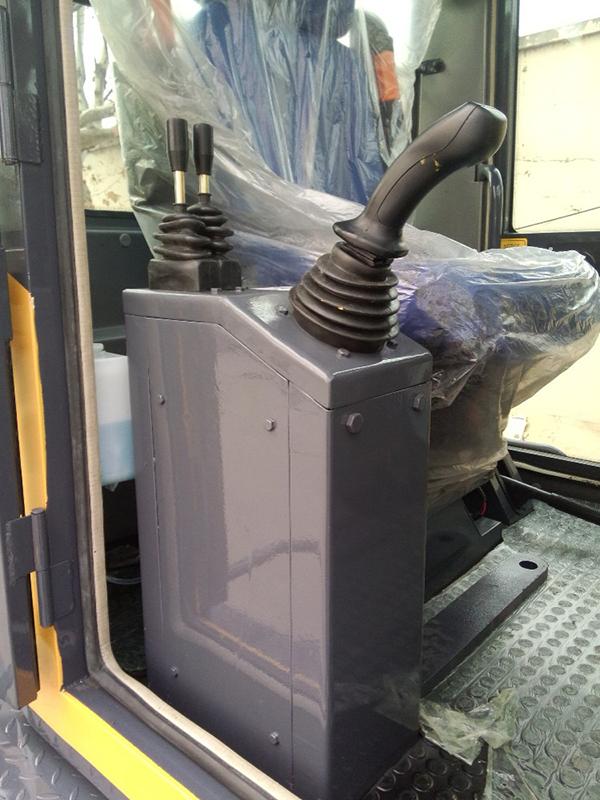

Operating lever

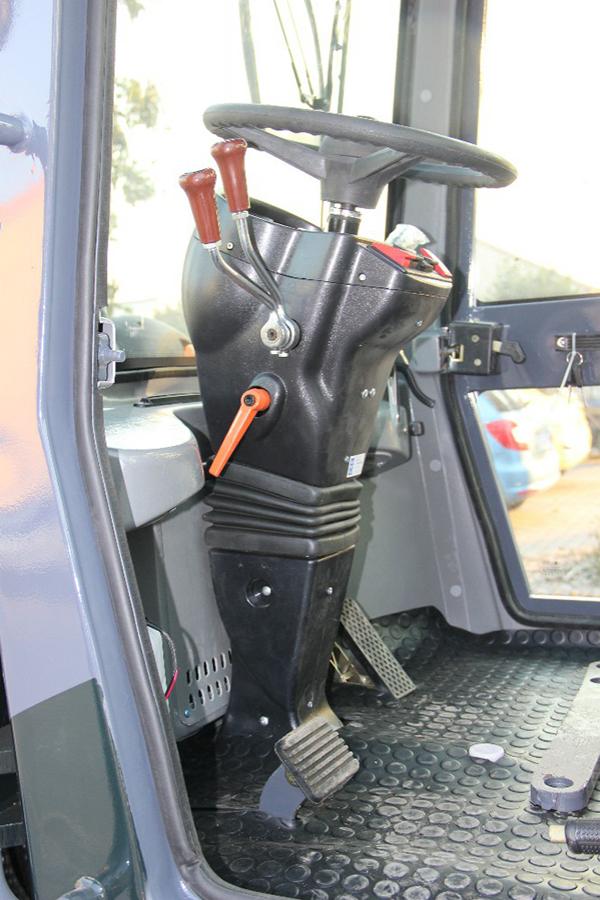

Operating panel

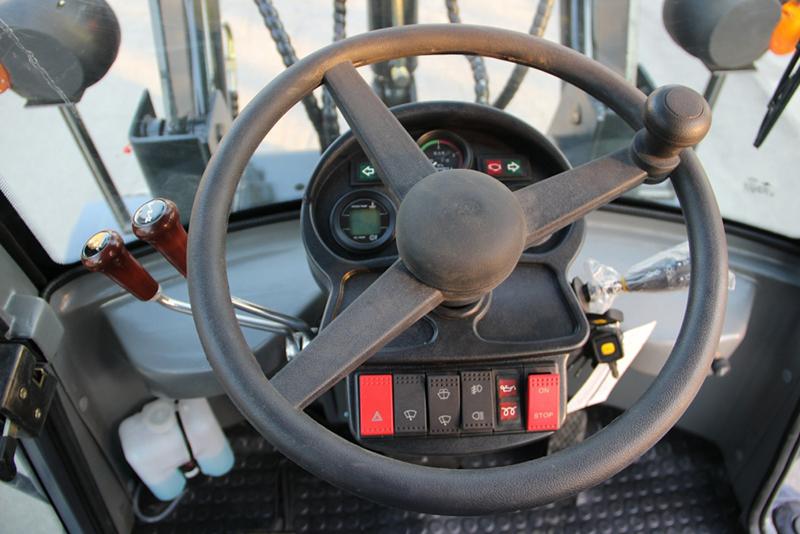

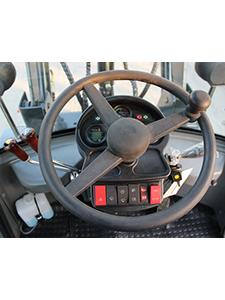

Steering wheel

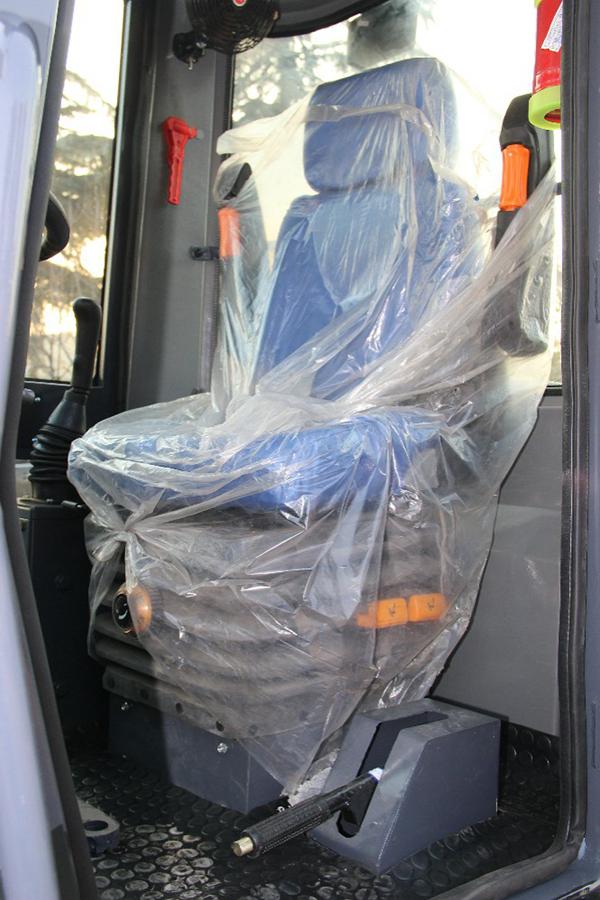

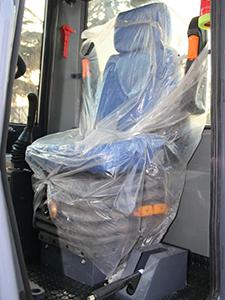

Adjustable seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
